CGDI CG100X New Generation Programmer for Airbag Reset Mileage Adjustment and Chip Reading

$599
SKU: CG-100X Available: In Stock
Free Shipping Express Shipping Service, Estimated delivery time: 5-7 Working Days
Package Dimensions 36.3 x 24.2 x 9.5 cm; 2 Kilograms
Item Weight 2 kg
Returns Return for refund within 30 days,buyer pays return shipping.
Features
  • CG100X is Covering 90% of models and modules on the market.
  • Including American, German, French, European, Korean, Japanese, Italian, domestic series, as well as engineering vehicles and motorcycles, it is powerful and the first choice for opening a store.
  • Stable and safe, convenient and intelligent.
  • Our services include repairing dashboard mileage for over 4,600 car models.
  • Supporting repairs for more than 4,500 airbag models, body control module repairs, accessory clone replacement, chip data reading and writing, as well as key functions for BMW CAS series and Land Rover models.

Related Download Files

Product Description

CG100X programmer covers 90% of the car models and modules in the market, including American, German, French, European, Korean, Japanese, Italian, Chinese domestic series, as well as engineering vehicles and motorcycles. It is powerful, and is the first choice for your store.

Product Functions:
  • Support 4600 car models dashboard mileage repair
  • Support more than 4, 500 airbag models repair
  • Support body control module repair
  • Support accessory clone replacement
  • Support various chip data reading and writing
  • Support BMW CAS series and Land Rover models key function
  • Free Update for 1 Year, after one year, it will cost $89 per year. Device can still perform if you don' t want to pay for the update cost after the first year

Language: English/ Chinese

How to activate brand new CG100X tool?
CG100X Features:
  1. Top ten accessories, functional classification
  2. Reading and writing speed up, status monitoring
  3. Eight pins without dismantling, pin detection
  4. Intelligent algorithm, real-time upgrade
  5. Hardware upgrade, data loss prevention
  6. Easy access, automatic search

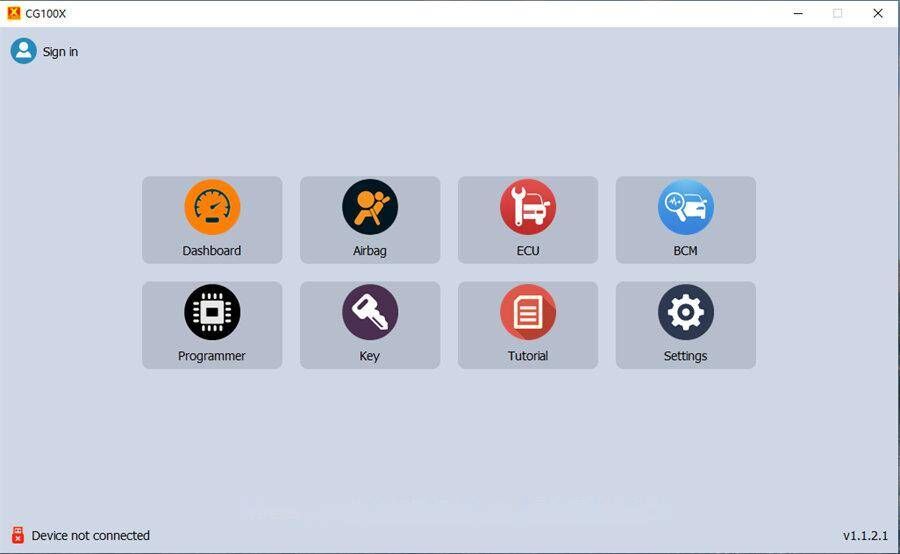

  • Open the software without plugging in the device, which is convenient for viewing the vehicle model and functions;
  • The car model search automatically matches special characters such as spaces and bars, regardless of case;
  • The general programmer search mask directly displays the chip;
  • In the list interface, click to enter and press Enter to enter;
  • Support picture scaling, display file open / save path.
CG100X vs CG100 vs CG70 Comparison Table

CG100X Functions List:

CGDI CG100X Function List

1.Dashboard Mileage Repair

The software is embedded with intelligent algorithms, automatic analysis of mileage data, support for more than 4600 models, success rate of more than 95%, and keep up with the market, real-time upgrades in progress.

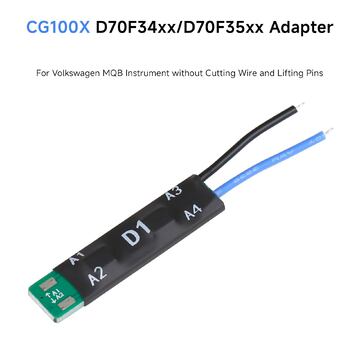

Moreover, it also supports VW MQB mileage repair, includes D70F3526 (A2C81589700) (read write), D70F3529 (read write), D70F3532 (A2C81589500) (read write).
Car models cover Golf, Magotan, Lavida, T-ROC, Tayron, Bora, Sagitar, Lamando, CC, Variant, Teramont, Skoda, Octavia, Kodiak and other models.

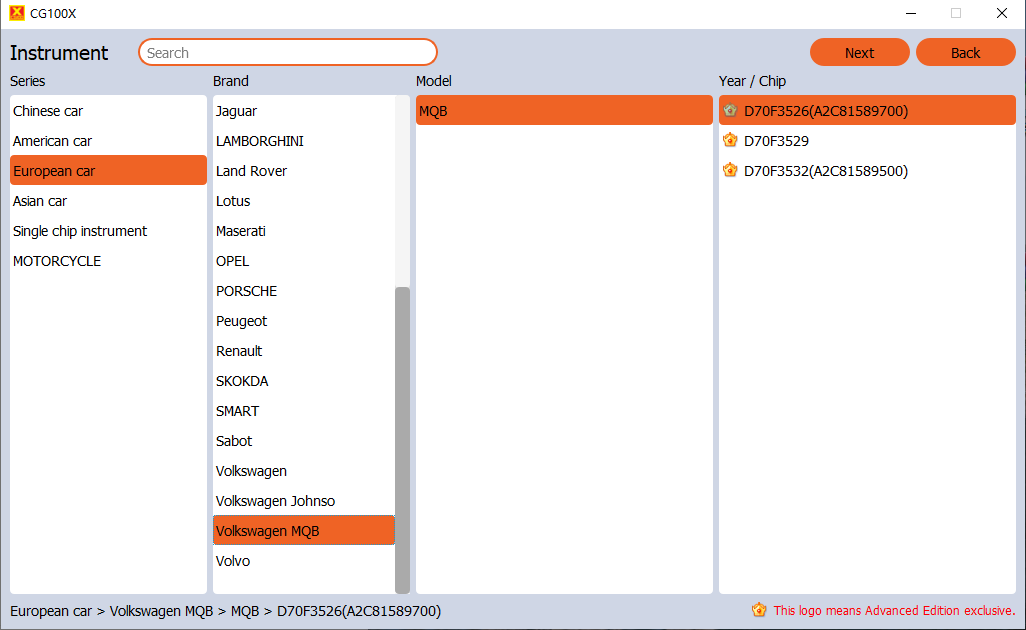

Operation:
Enter " Dashboard” function, select car series, brand, model and year / chip, double-click the year / chip you selected or click“ Next" , and you can see the related operation instructions (precautions, EEPROM adapter required and wiring diagram). Then click " Start Operation" to do step by step.

CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading
CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading

2. Airbag Reset
It contains more than 4, 500 ECU models, dedicated to solving airbag failures, analyzing the cause of the light, perfectly clearing fault codes, and more models are continuously being added.

Operation:

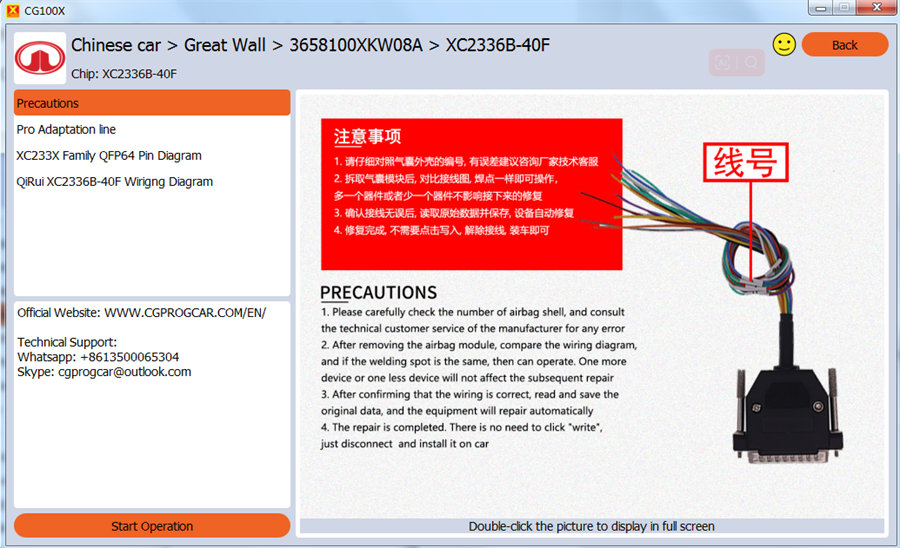

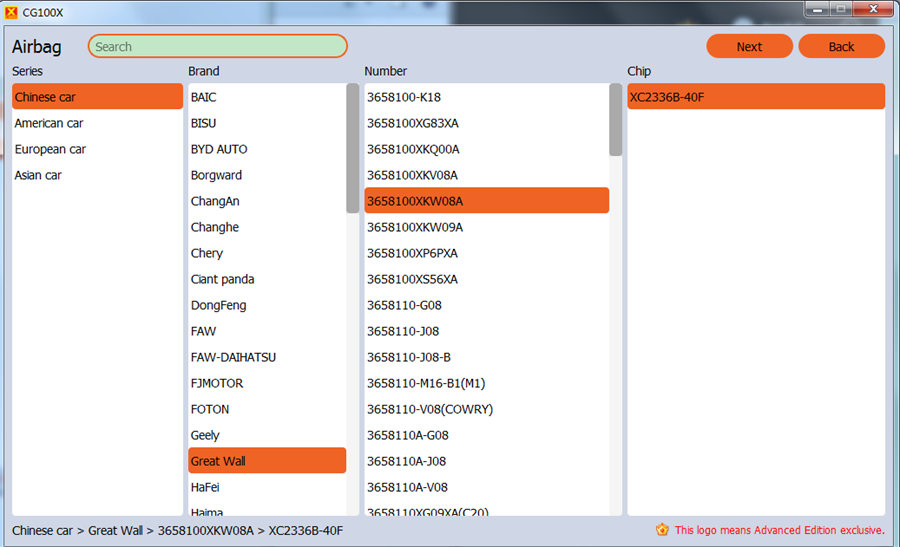

Run CGDI CG100X software Enter“ Airbag” function, select car series, brand, number and chip, double-click the chip you selected or click“ Next" , and you can see the related operation instructions (precautions, eeprom adapter or cable required and wiring diagram). Then click“ Start Operation” to do step by step.

CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading
CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading

3. Body Control Module Repair
It' s specialized in automotive electronic fault repair, good at all kinds of common problems repair, support auto repair commonly used engine computer, steering angle, foot space module, keyless entry module, audio amplifier, transmission computer, 48V light lithium battery, 12V lithium battery and other kinds of body computer. A body computer provides vehicle data and assists repairmen in resolving vehicle failures.

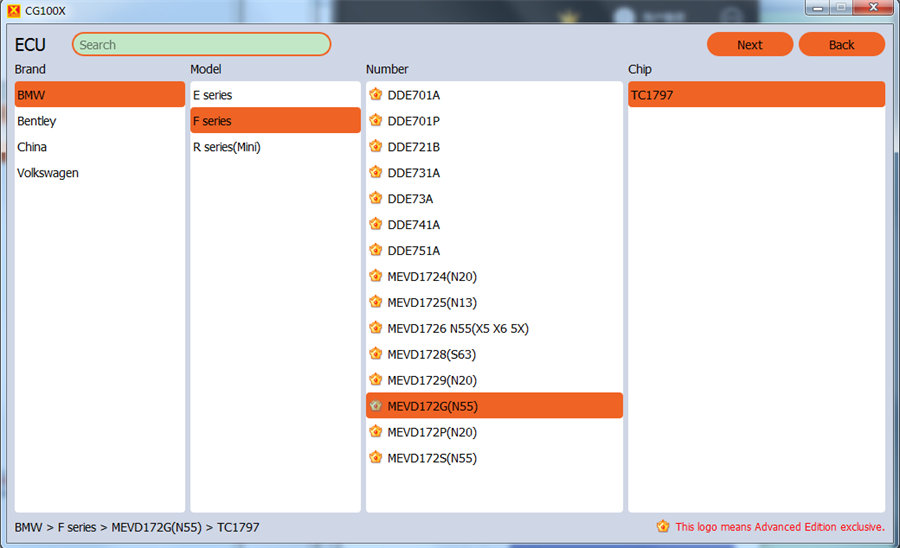

ECU Repair Operation:
Enter“ ECU" function, select car brand, model, number and chip, double-click the chip you selected or click “ Next” , and you can see the 35X-CAN Adapter required and wiring diagram. Then perform read eeprom, write eeprom, read flash and write flash.

CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading
CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading

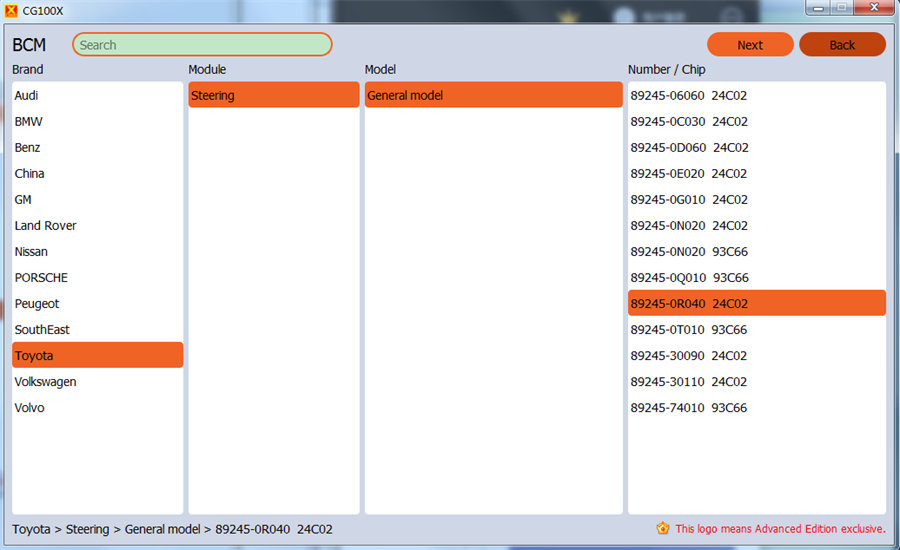

BCM Operation:
Enter“ BCM” function, select car brand, module, model, and number/ chip, double-click the number / chip you selected or click “ Next” , and you can check the precautions, Pro adaptation line required and wiring diagram. Then click “ Start Operation” to do step by step.

CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading
CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading

4. Accessory Clone Replacement
Solve the pain points of the repair shop, a single device can replace accessories, data cloning, analysis and repair, one-click operation without asking for help.

5.Various Chip Data Reading and Writing
It covers more than 90% of car chips, and supports more than 1800 models read, modify, write, erase, partition and save, still can also analyze data with the browser that comes with the software.

Operation:

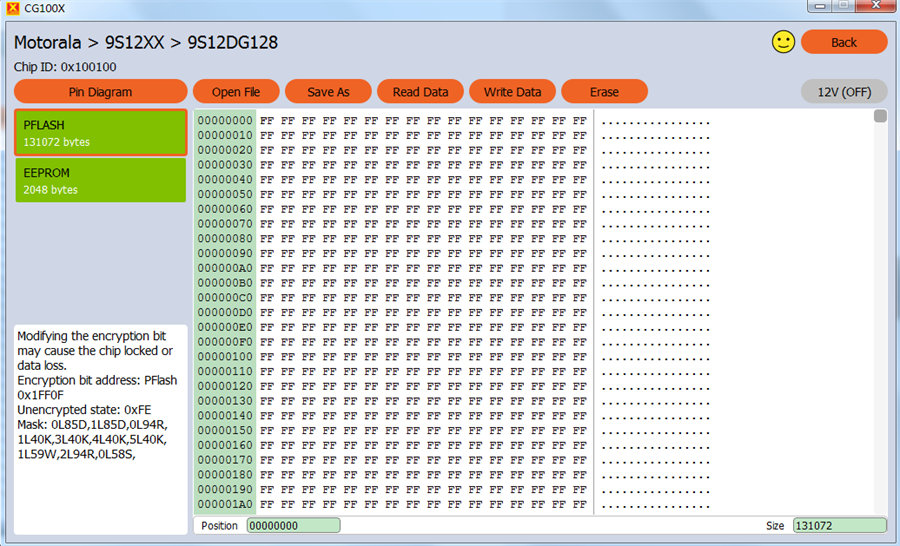

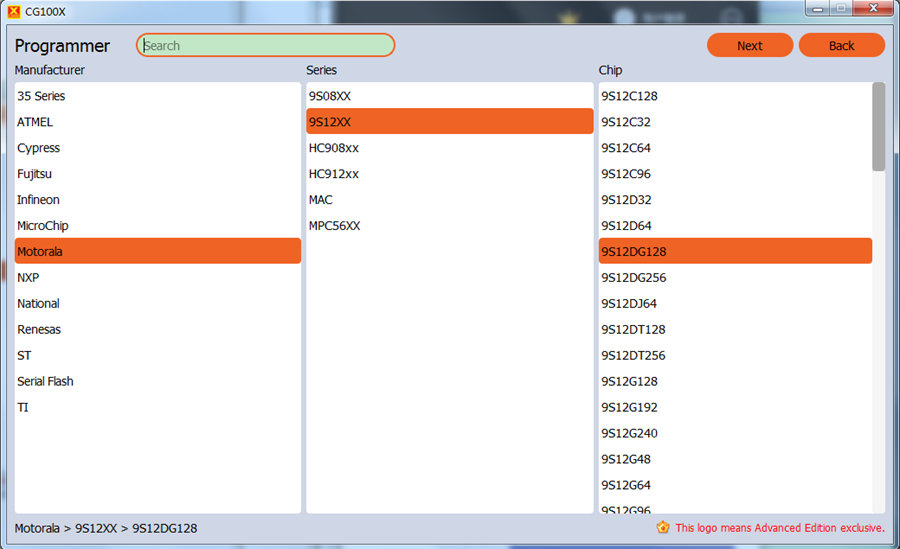

Enter“ Programmer” function, select manufacturer, series and chip, double-click the chip you selected or click “ Next” , and then you can see the pin diagram, and perform the function you want such as read data, write data, erase, etc.

CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading
CGDI CG100X Programmer for Airbag Reset Mileage Adjustment and Chip Reading

Which EEPROM are supported by CGDI CG100X Programmer?


24 series, 25 series, 35 series, 93 series, 95 series, X50 series, S29 series, RH series, CAT10 series, CR series

Fujitsu
MB90 series, MB91 series, MB96 series

Microchip
PIC18F series

Texas Instruments (TI)
TMS series
NXP (NXP)
S32K1 series
Motorola / Freescale
9S08 series, 9S12 series, HC908 series, HC912 series, MAC series, MPC56 series
Atmel
ATMEGA series
Renesas
H8SX series, M32R series, R5F10D series, RH850 series, V850 series
Infineon
TC series, XC series
Saiyi Law (ST)
SPC series, ST10F series, STM32F series, STM8 series
Cypress / Spansion Semiconductor (Cypress / Spansion)
S6J series

6. Key Function
CG100X programmer supports car key matching for BMW CAS series and Land Rover models, automatically displays key ID and usage status, and assists locksmiths to complete key matching work.


Operation:

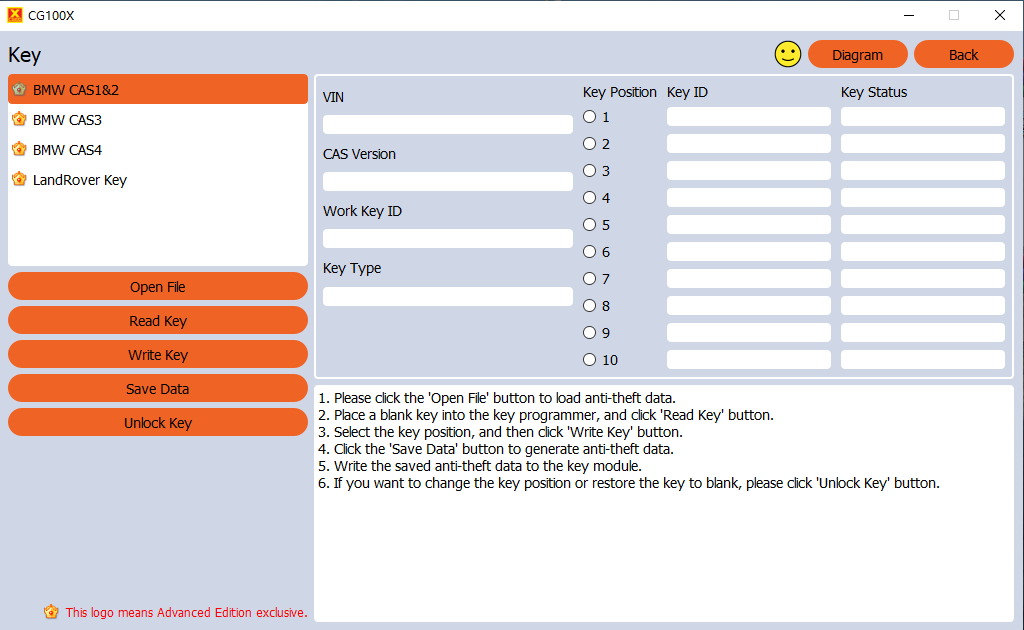

Enter“ Key” function, select BMW CAS series or LandRover key, and follow the on-screen instruction to do.

CGDI CG100X Programmer

How to Register and Activate CGDI CG100X?

Step 1: Download and install the newest CG100X software
CG100X Software Free Download

Follow the on-screen prompts to install software easily.

Step 2: Connect device
Connect CG100X to computer via the USB cable, and also connect with 12V 2A power supply
Open CG100X software, and you will receive the activation prompt “ The device is not activated, cannot be used. Now activating the device will get 1 year free software upgrade and technicial support service. Do you want to continue? ” Click OK to continue.

Step 3: Register CG100X account
"
Before activation, please log in to your account and bind your device.”

If you have an account already from CGDI MB & CGDI BMW & CG PRO 9S12 & CG100, click OK and log in directly.
If you do not have an account, go to register an account. Click OK and choose " No account? Create one! " .

1. Recommend you to type these information (user name, password, name, phone number, and email address) on a text file and save it, copy them and paste into cg100X software when create account.
2. Recommend you to use simple user name and password, it is easy to remember in the future.
3. After filling all the information, click the “ Submit” button. And the account is created successfully.
4. Copy your user name and password and log in. Then tool will be activated successfully.
5. If you cannot receive code by phone number or email address , please change the server connection area one by one and try again.

Step 4: Activate CGDI CG100X
After you create account successfully, then sign in with the available account.
After sign in successfully, click OK and click " Activate the Device Now” at the top of the page

Then you will get the message " Bind your device to your account, then activate. Please confirm to continue.”
Click OK

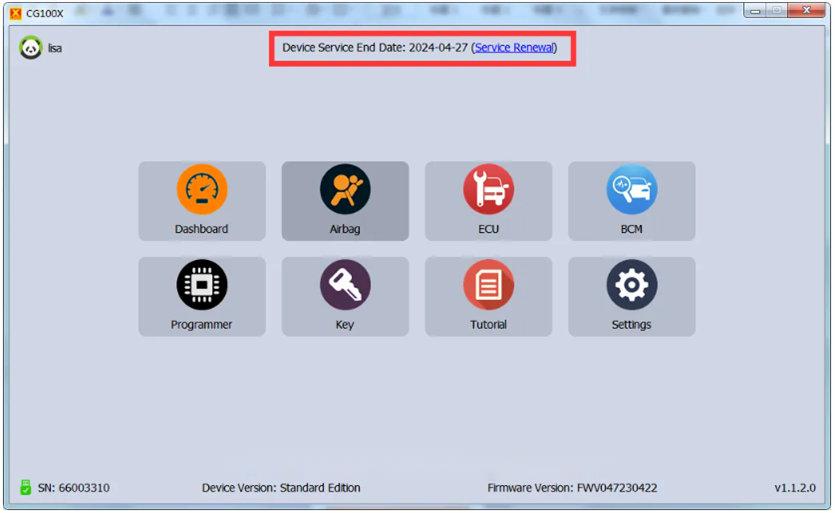

Now the activation is successful, and you can see the subscription time (device service end date).

CG100X Programmer

CG100X Latest Update Information:
CG100X Software Free Download

CG100X new version V1.2.6.0(2023.8.25)
Added 80 models for instrument mileage adjustment
Added 7 models for data read and write function

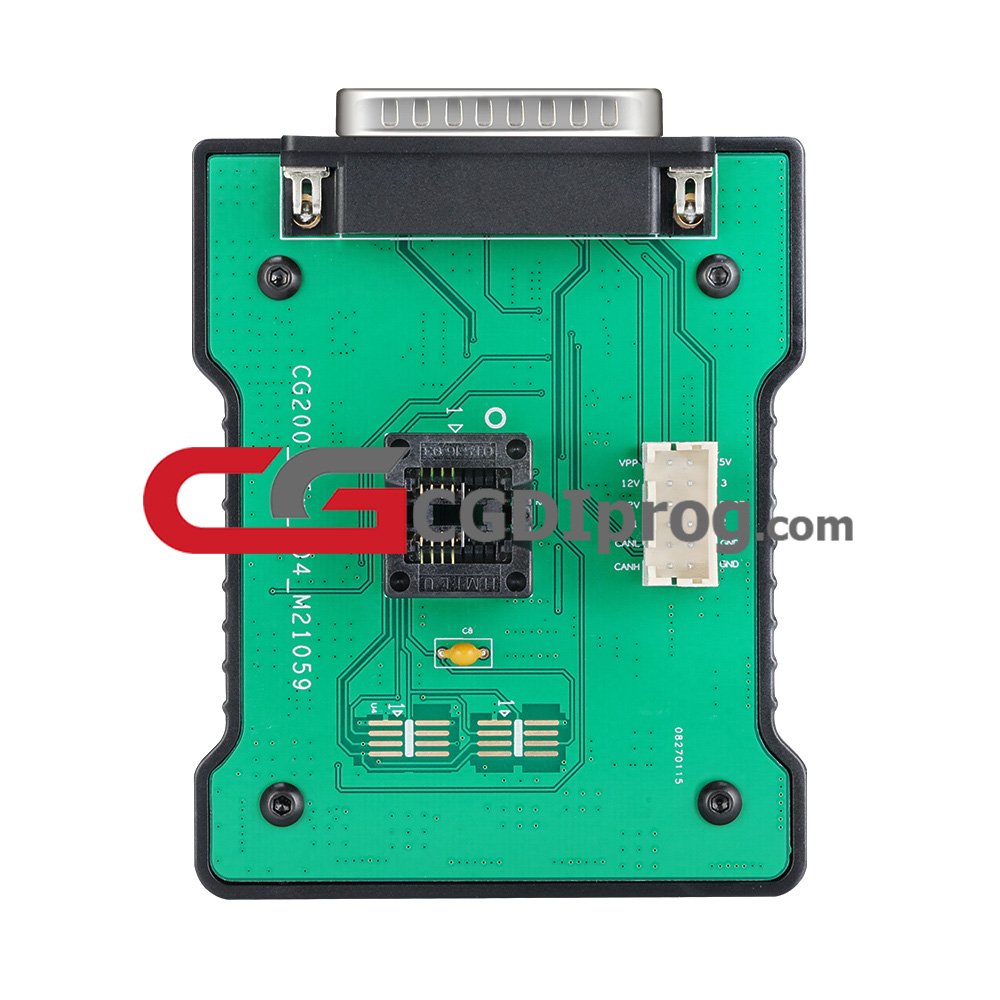

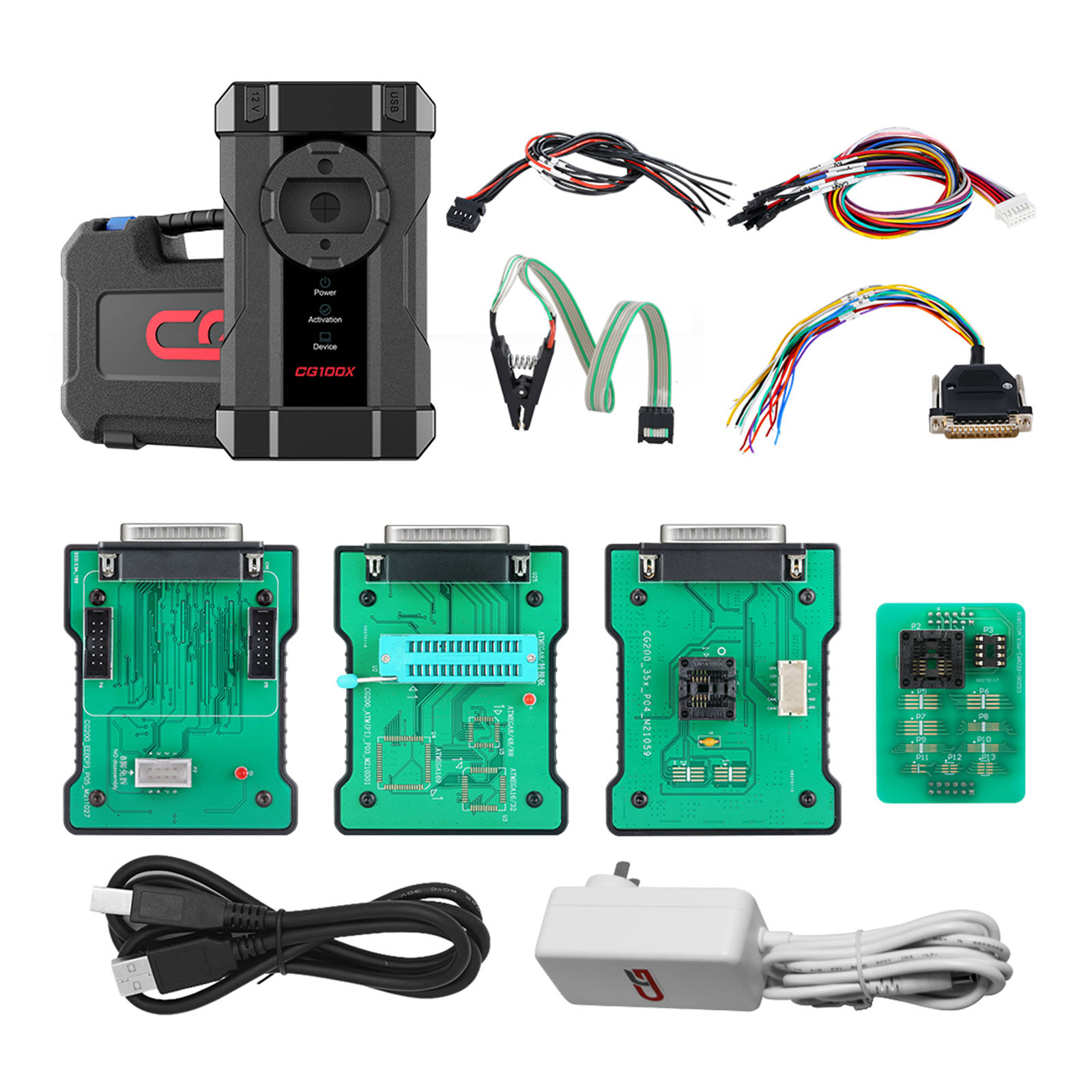

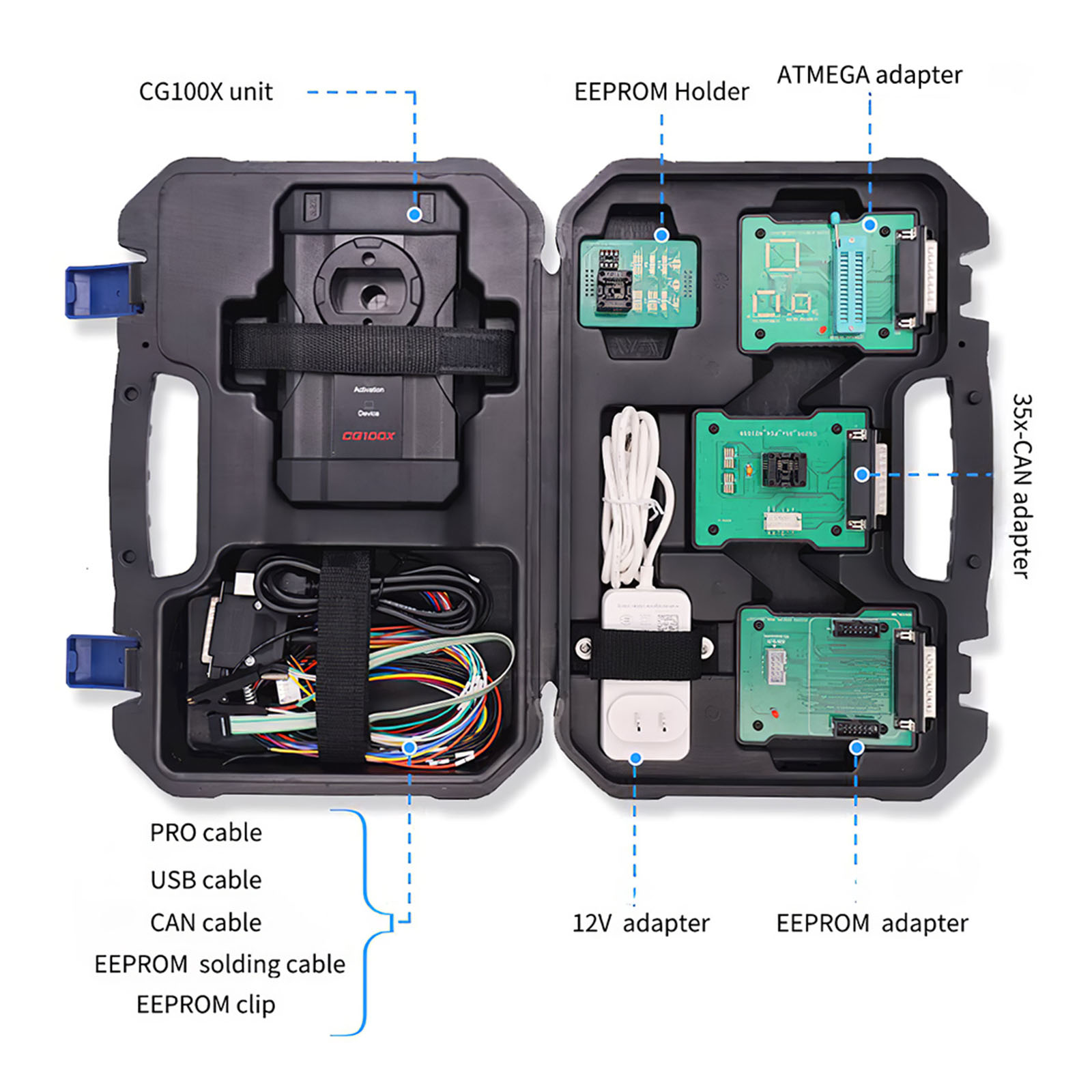

Package Includes:

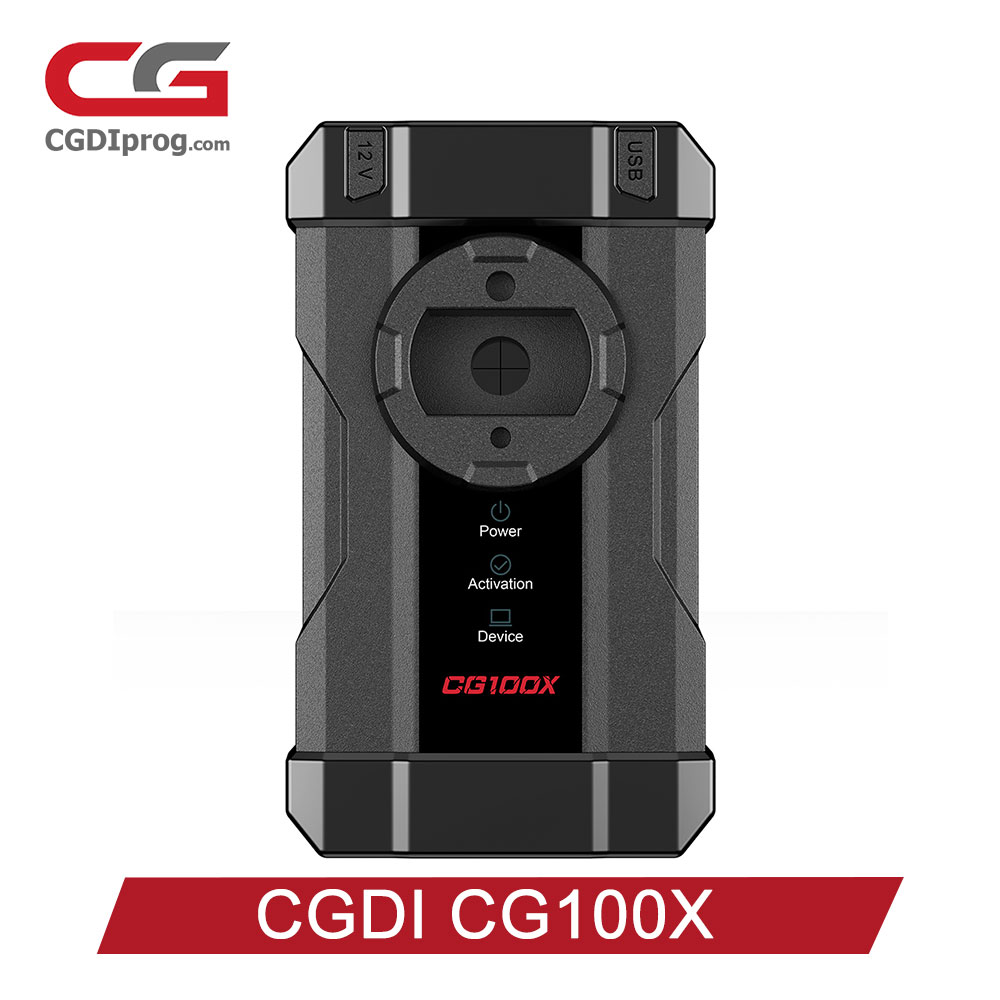

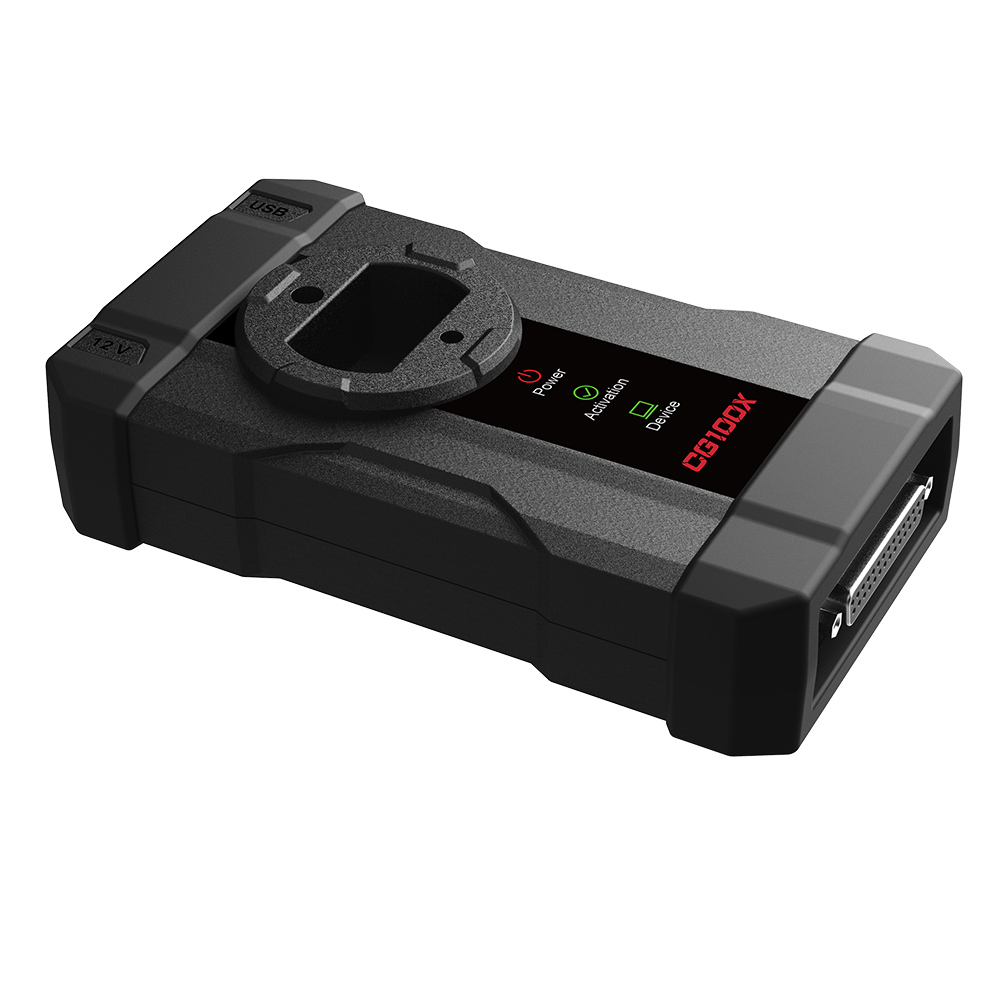

1pc x CG100X unit
1pc x EEPROM holder

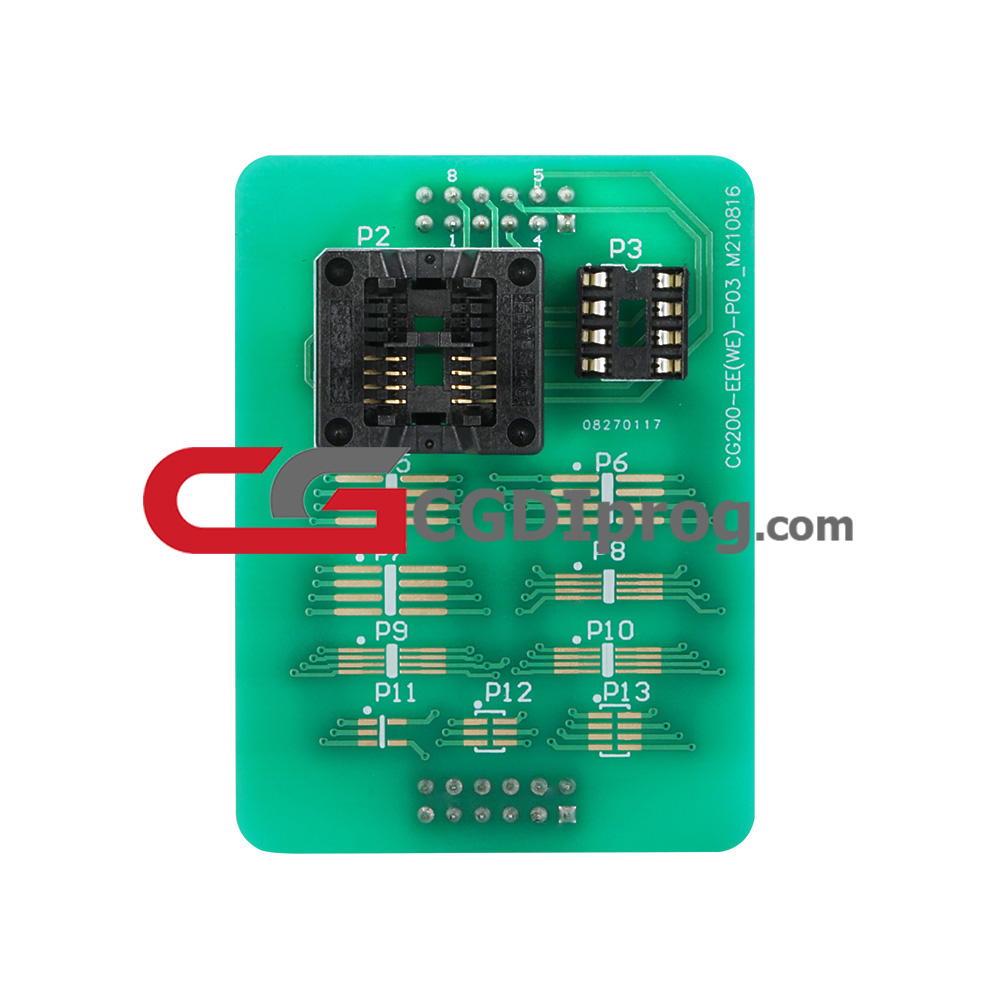

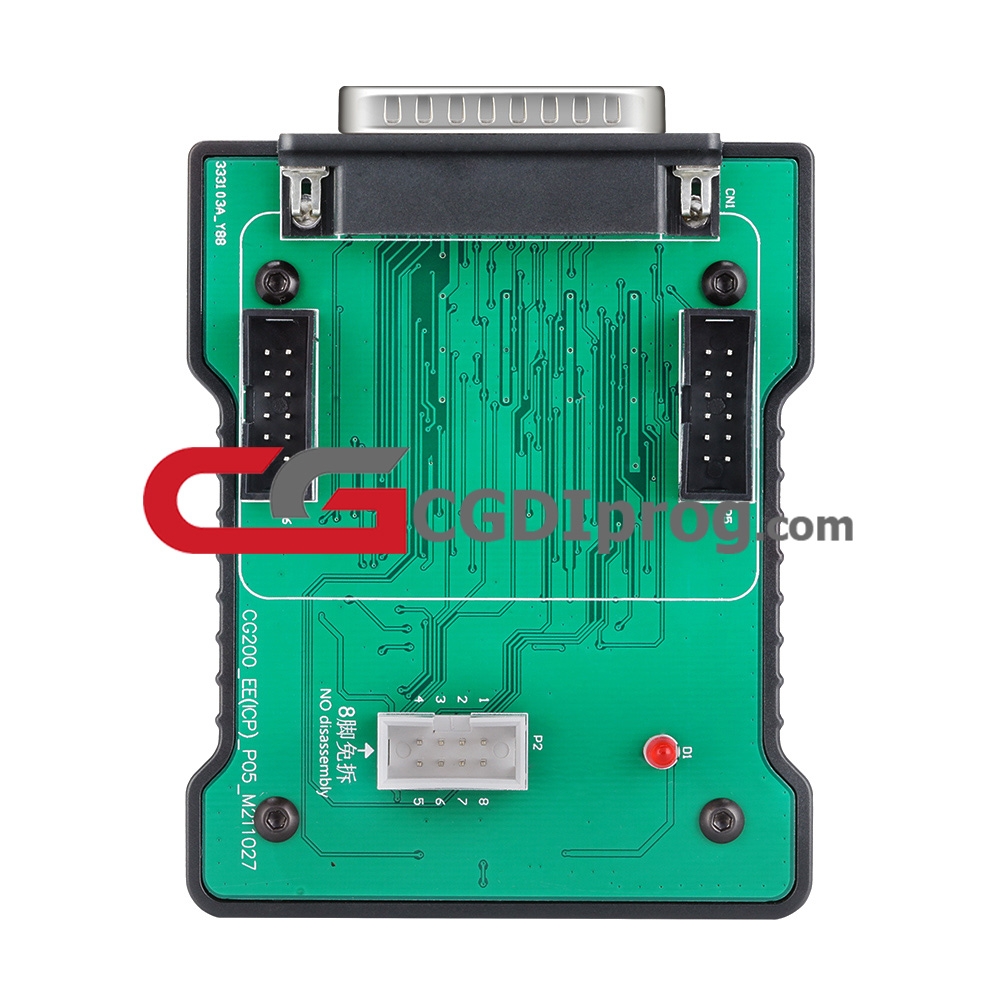

1pc x EEPROM adapter

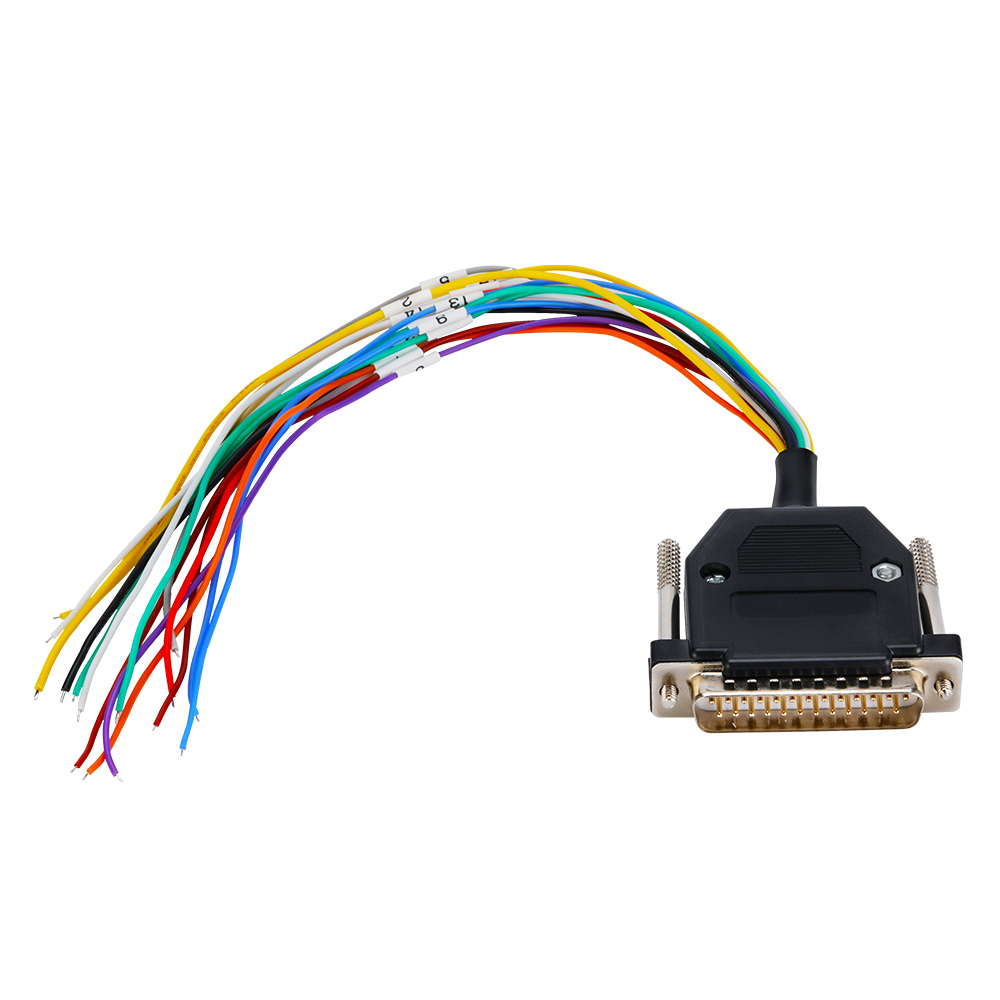

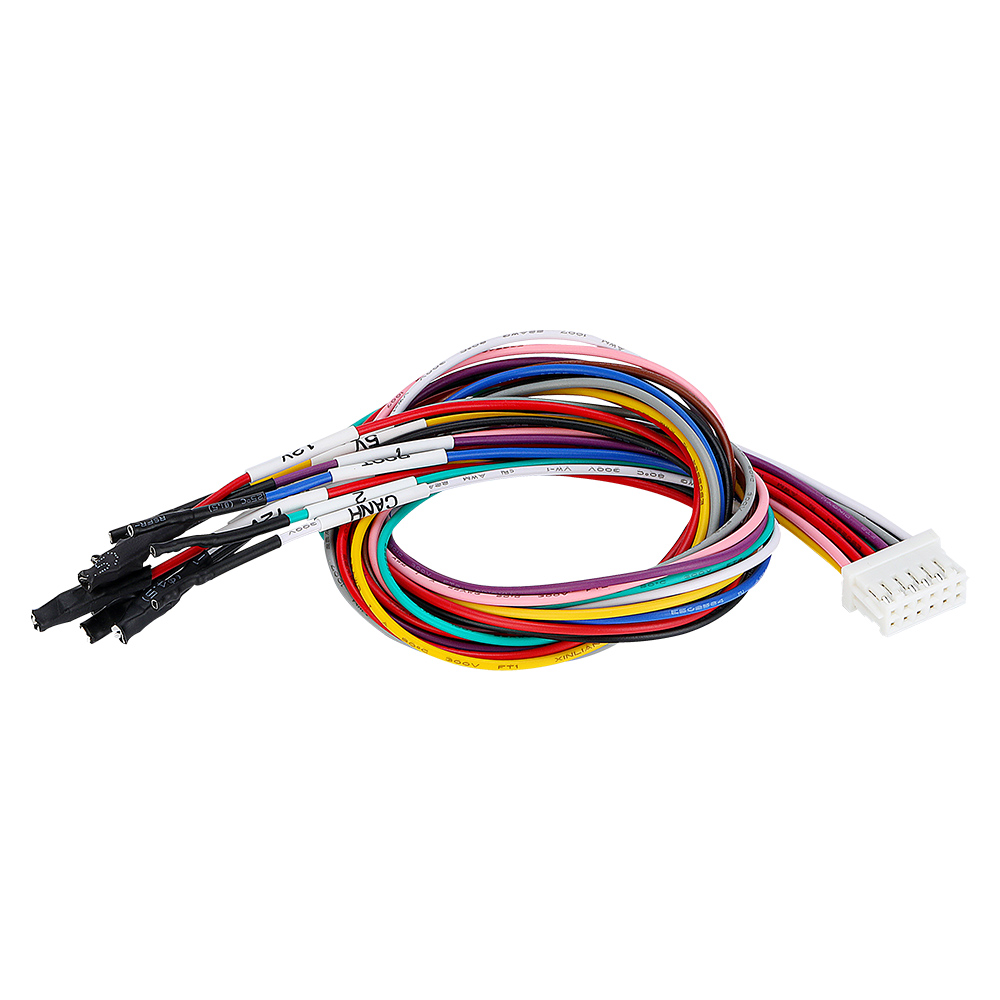

1pc x PRO cable

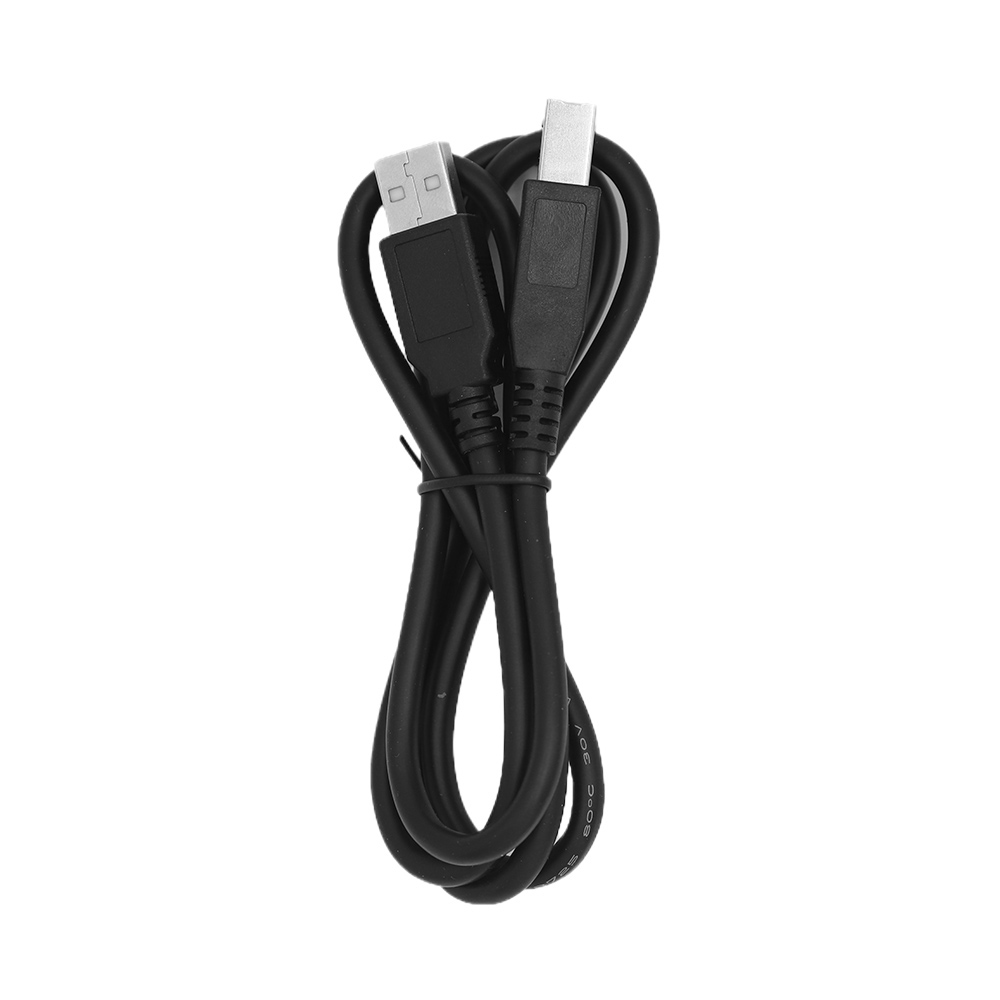

1pc x USB cable
1pc x CAN cable

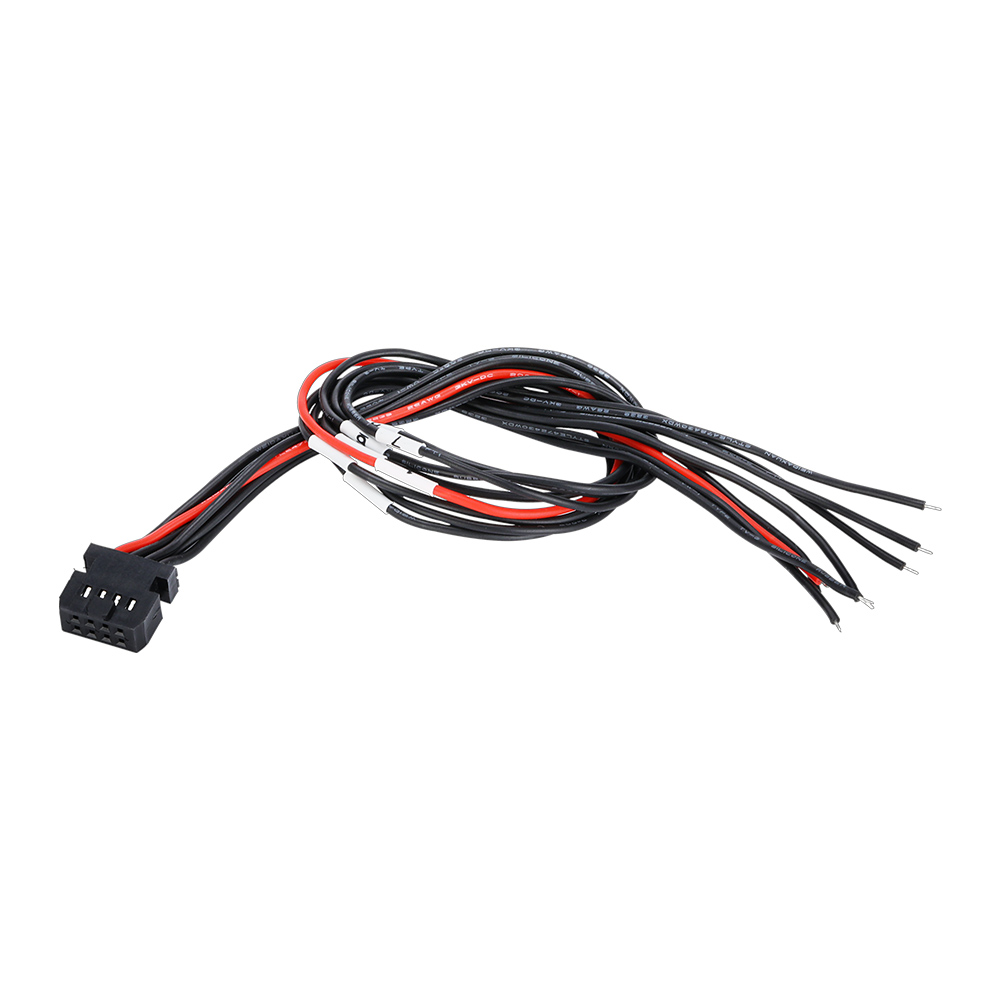

1pc x EEPROM soldering cable

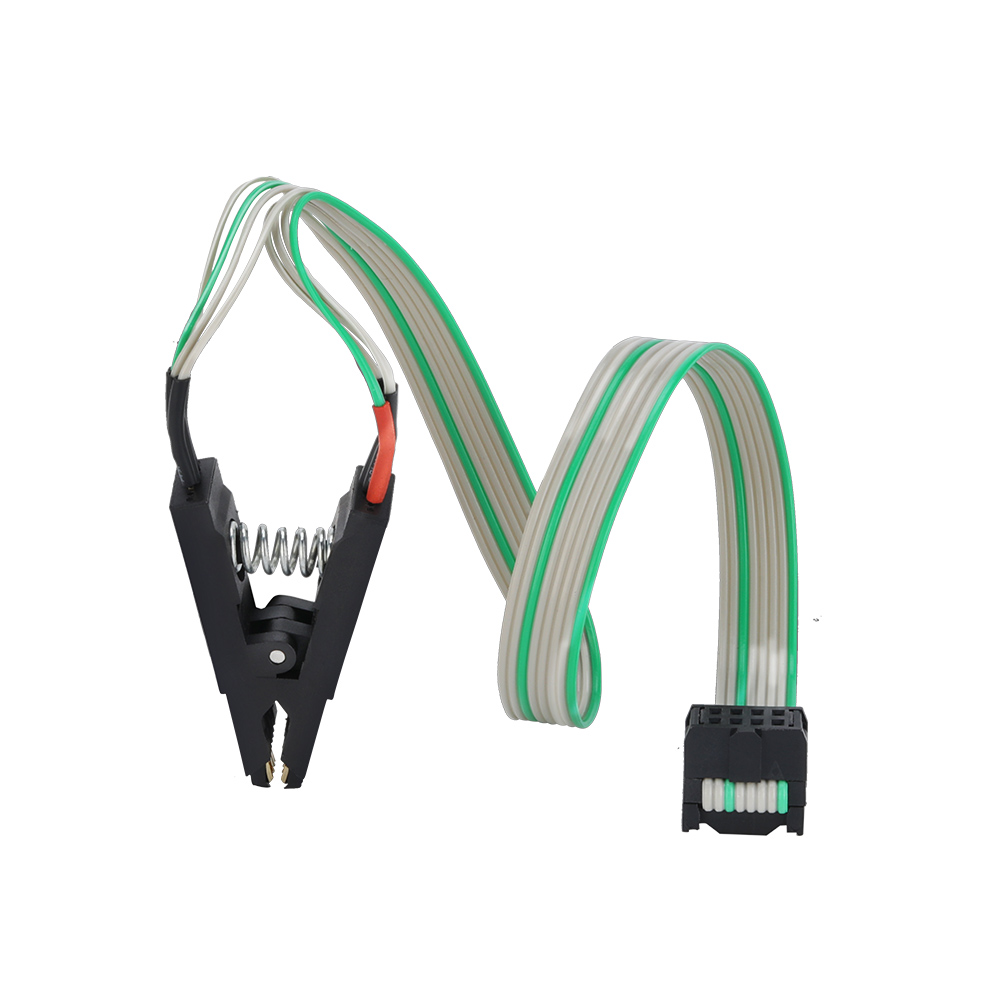

1pc x EEPROM clip
1pc x adapter
1pc x EEPROM adapter


We are here for you:

Email: Sales@CGDIprog.com
WhatsApp: +86-18205996549
Skype: Sales@CGDIprog.com

Tech Support

Here is a guide on using CGDI CG100X programmer or CG100 Prog III to reflash BCM lithium battery module. By following these instructions, you can disable the protection mode and restore the battery to its normal functioning.
When a Porsche Cayenne experiences a significant accident or the voltage of its 12V lithium battery drops too low, the battery enters a protective mode and becomes unchargeable. As a result, the vehicle fails to initiate, and replacing the battery becomes a costly endeavor.

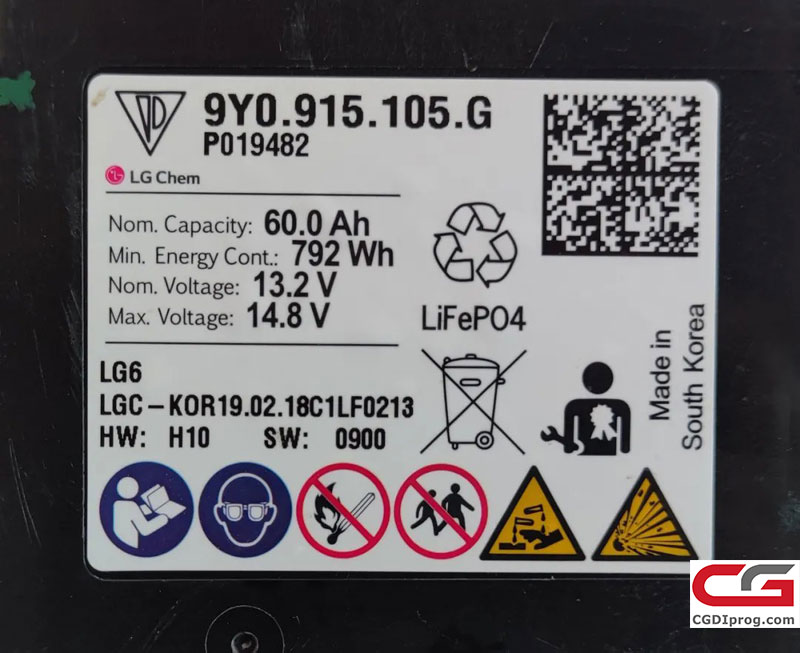

The lithium battery has a label on its front side, which provides essential parameter details such as capacity, voltage, current, and production date.
CG100X Programmer - Porsche Cayenne 18-20 BCM 12V Lithium Battery Repair Guide

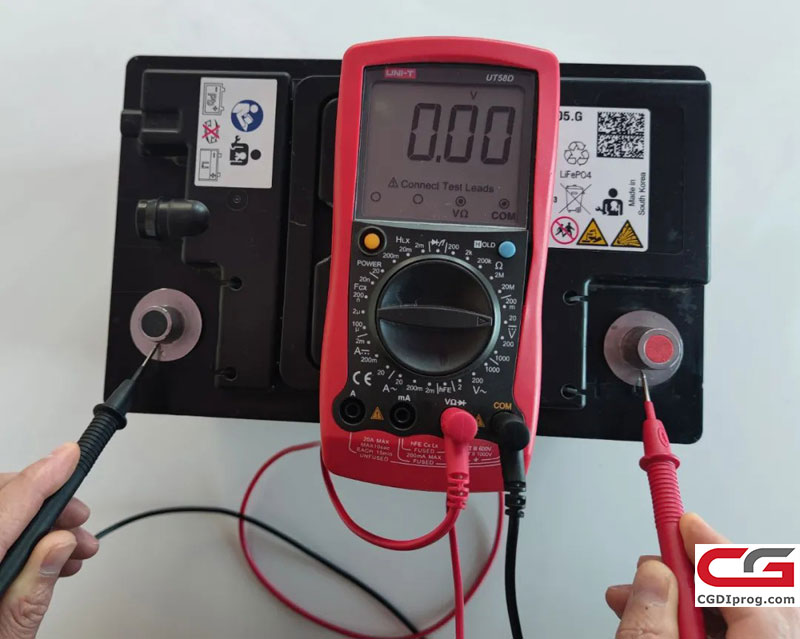

To determine the voltage of the battery, a multimeter is utilized when the battery remains intact. If the measured voltage is 0V, it indicates that there is no voltage output from the battery. Consequently, the battery cannot be charged, and no current can be input into it.
Voltage Measurement of Porsche Cayenne's Lithium Battery

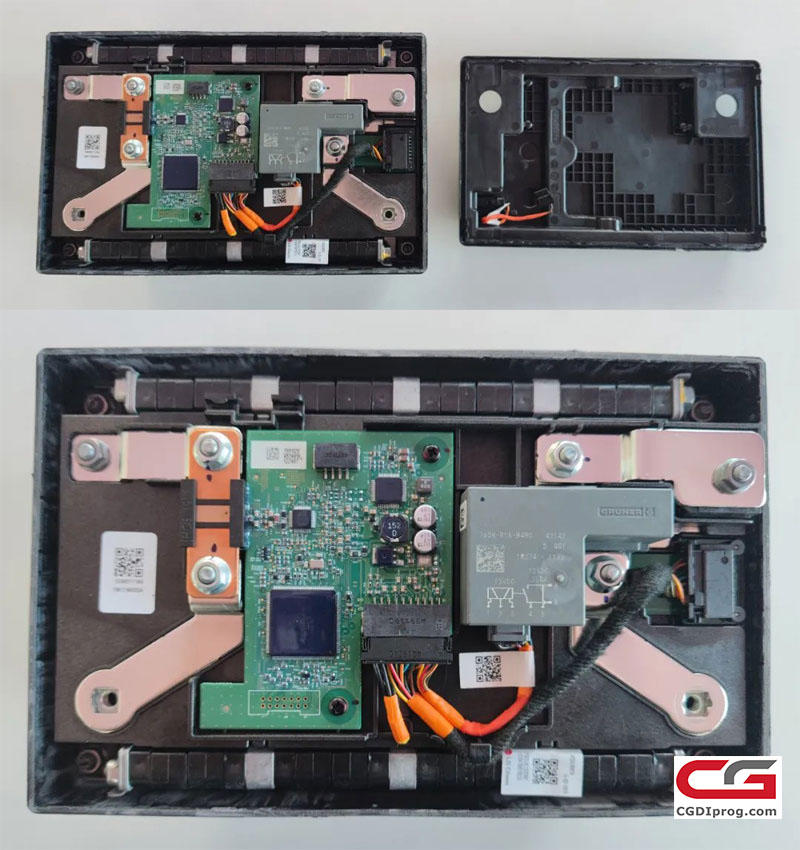

Take off the battery cover
Removing the Battery Cover

Take another reading of the battery's voltage.

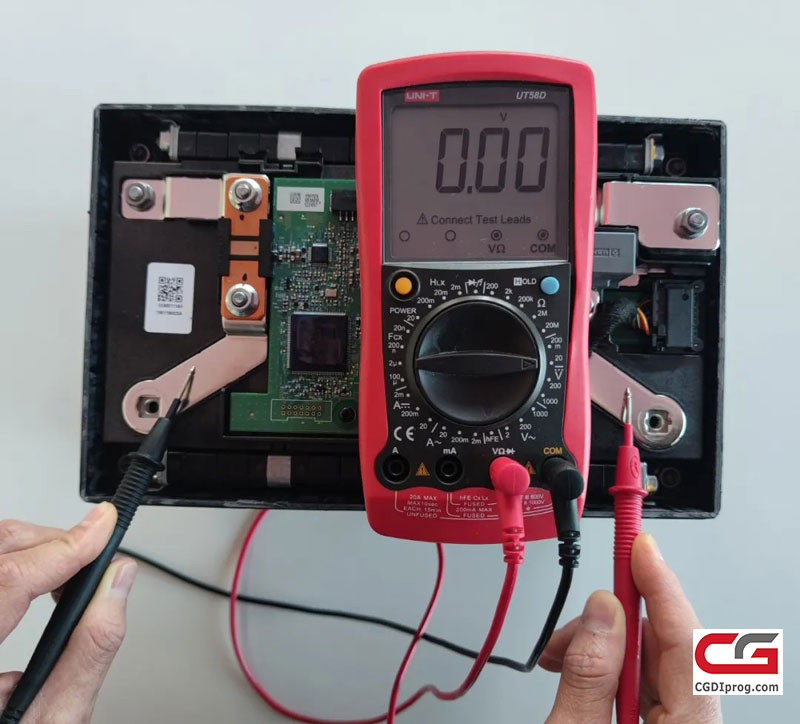

Voltage Reading After Removing the Battery Cover

Upon opening the battery case, there is no voltage output as the measured voltage remains at 0V.

To bypass the relay, which is connected in series in the positive direction, we continue measuring the voltage. The multimeter displays a reading of 1.92V, indicating that the battery does have voltage, but it is being blocked by the relay.
Bypassing the Relay to Measure Battery Voltage

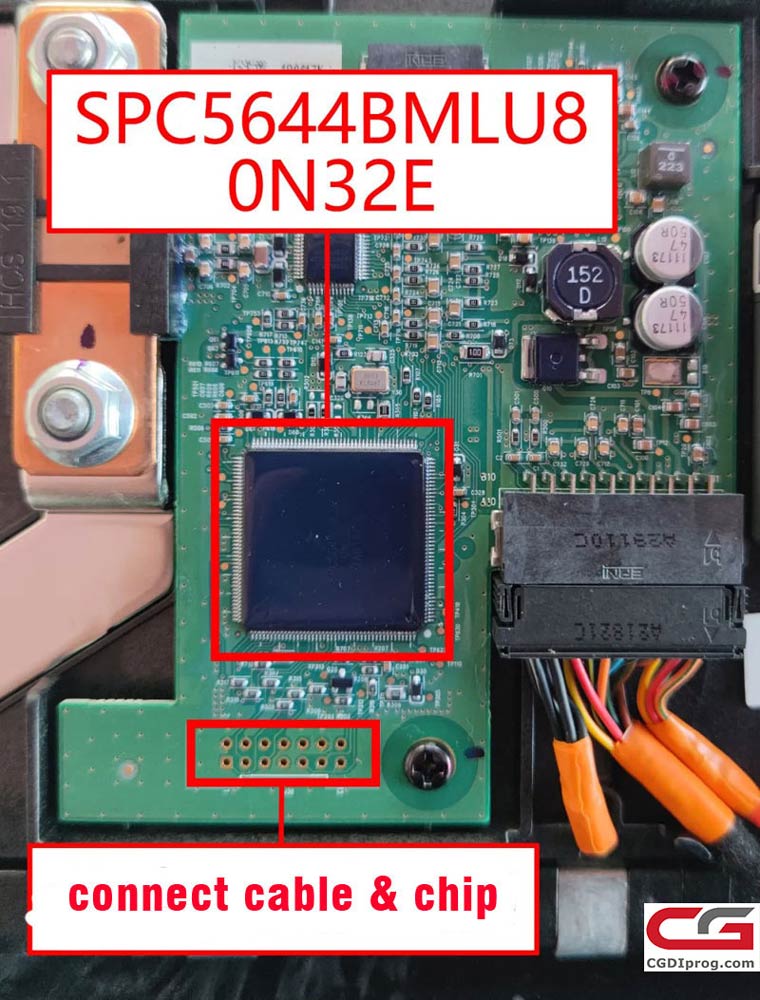

To locate the IC chip, simply open the upper case of the battery. This IC chip, produced by Freescale and identified as the SPC5644BMLU8 model, controls the overall operation of the battery.
Identifying the IC Chip in the Battery

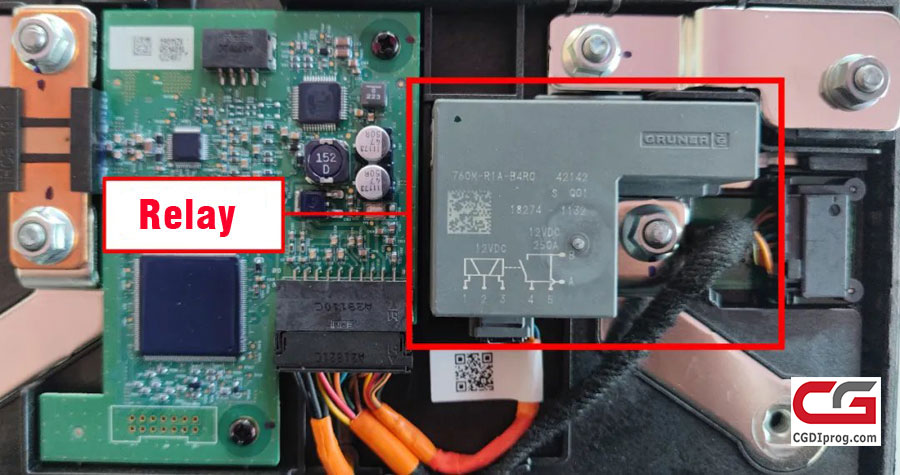

The function of the battery relay is to be controlled by the BCM. In the event of a collision or when the battery voltage is too low, triggering the protection mode, the BCM cuts off the connection between the battery cell and the external battery terminal through the relay. This prevents battery over-discharge, which could lead to danger or battery damage. Consequently, the battery becomes unable to charge or discharge.
Battery Relay Controlled by BCM

We take CG100 prog 3 for example, to repair a Porsche lithium battery using CG100, follow these steps: First, confirm the manufacturing year of the battery, such as 2018.

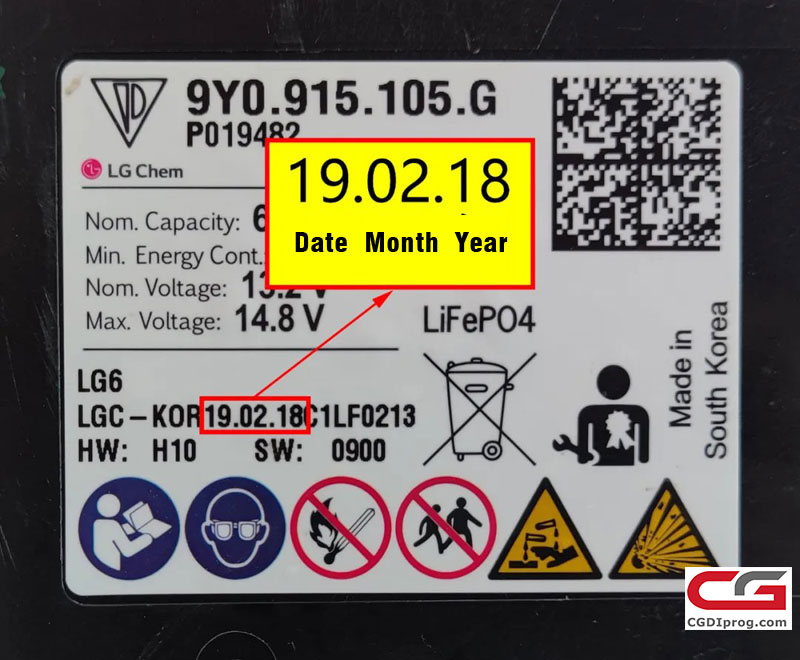

Confirming the Manufacturing Year of the Battery

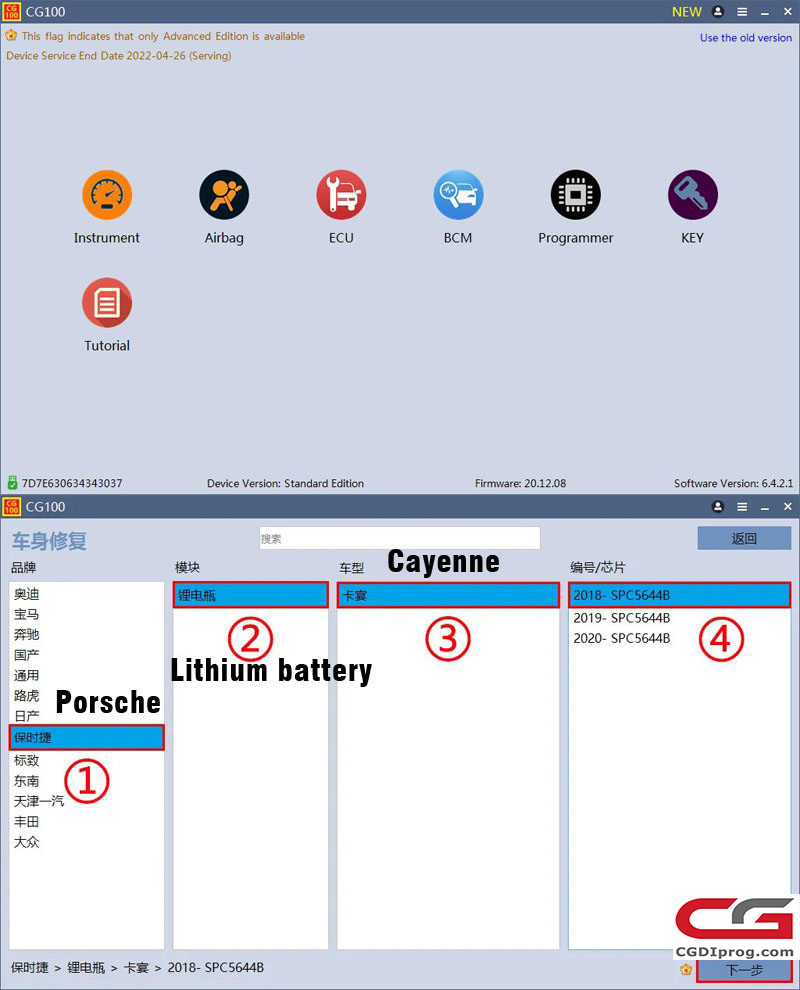

Next, launch the CG100 software and select the appropriate options: BCM - Porsche - lithium battery - Cayenne - 2018 - SPC5644B.
Selecting Options in CG100 Software for Porsche Cayenne Battery Repair

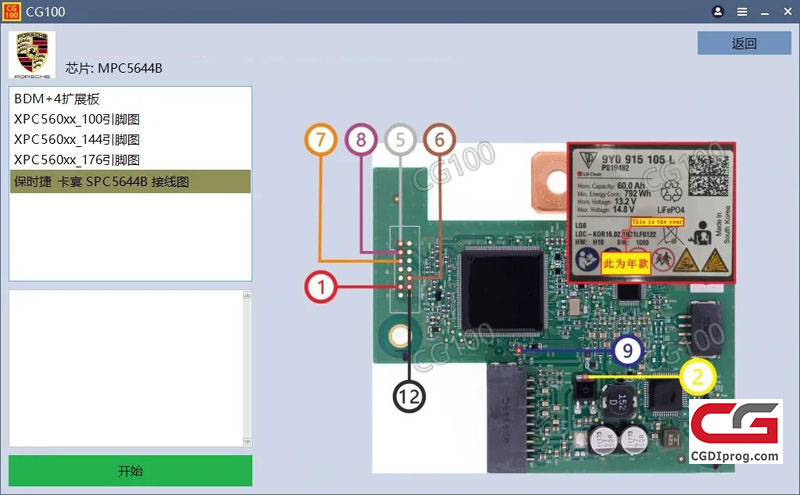

The software will display the wiring diagram.

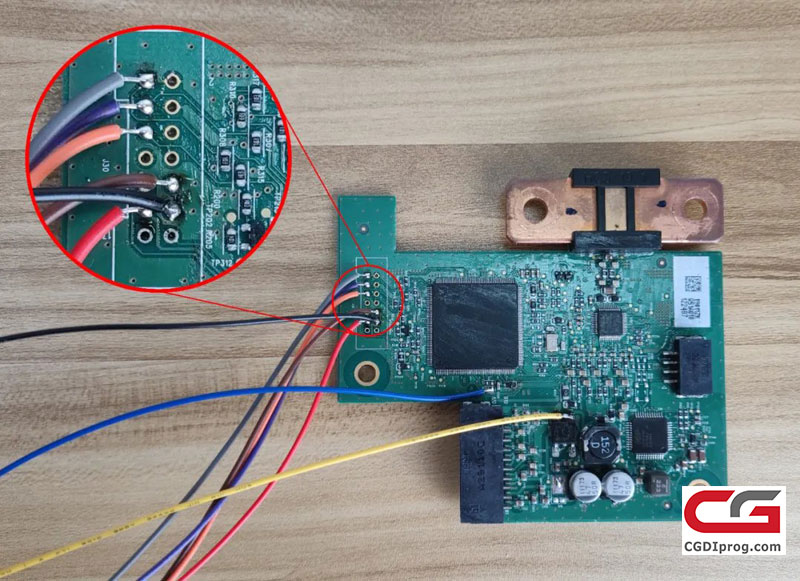

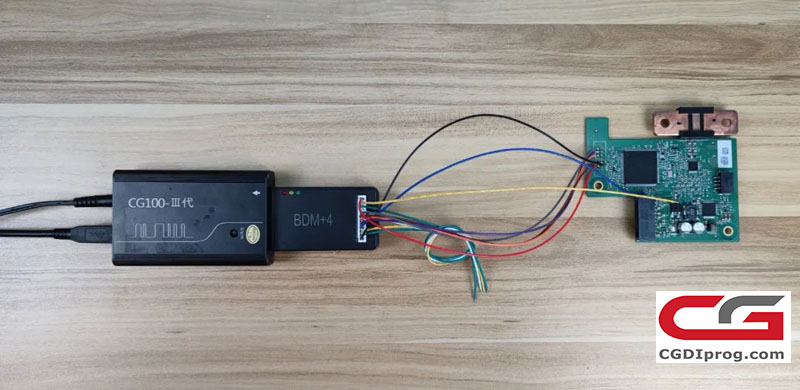

Connect the battery to CG100 using the BCM4+ adapter, ensuring a proper and secure connection.




Click on 'Read' to retrieve the data.

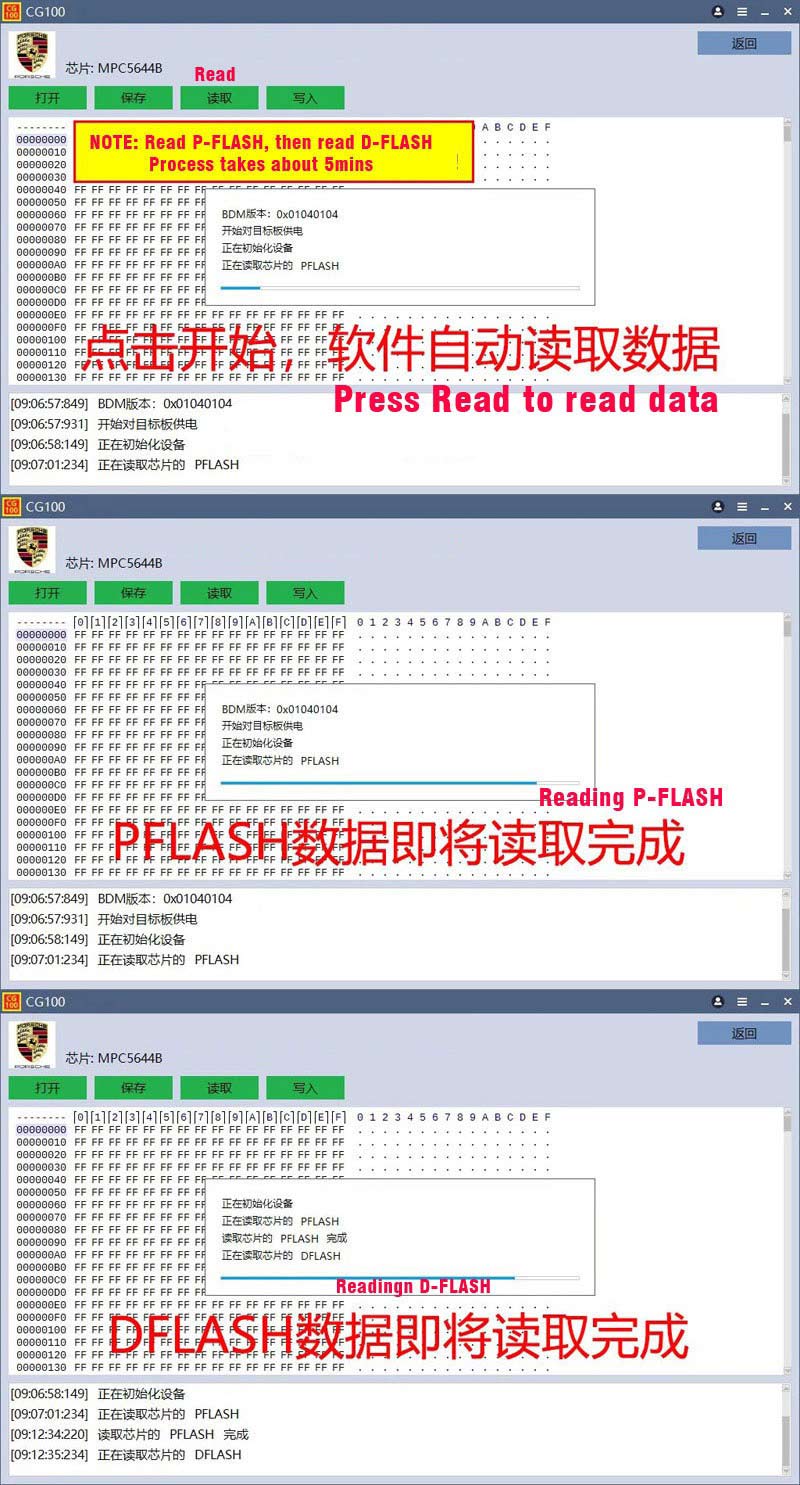

Start by reading the PFLASH, followed by the DFLASH data. This process typically takes about 5 minutes, and it is crucial not to disconnect the device during the operation.

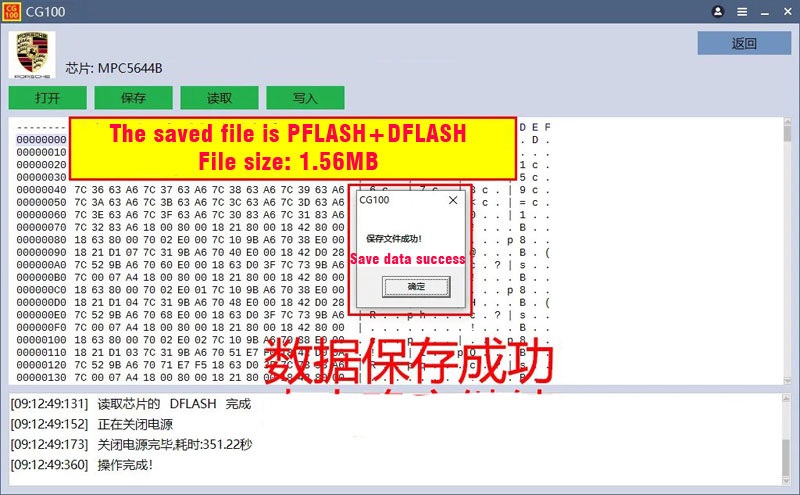

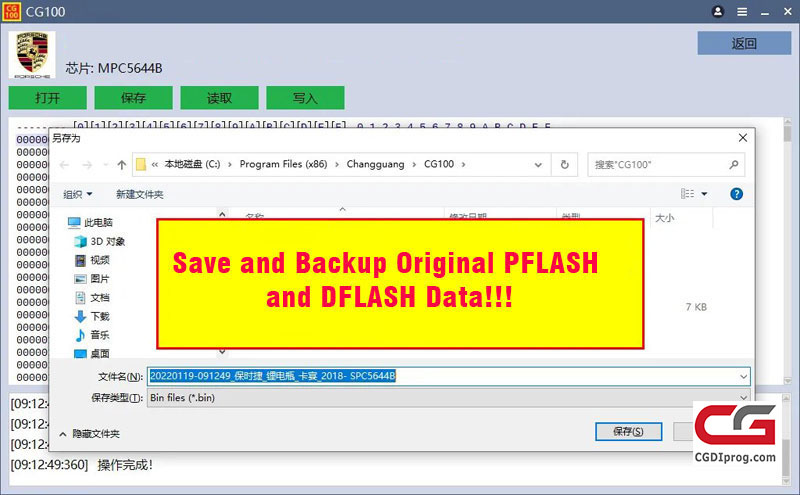

Save the original PFLASH and DFLASH data, which will be stored in a file containing both sets of data, with a file size of 1.56MB.



Proceed to write the data.

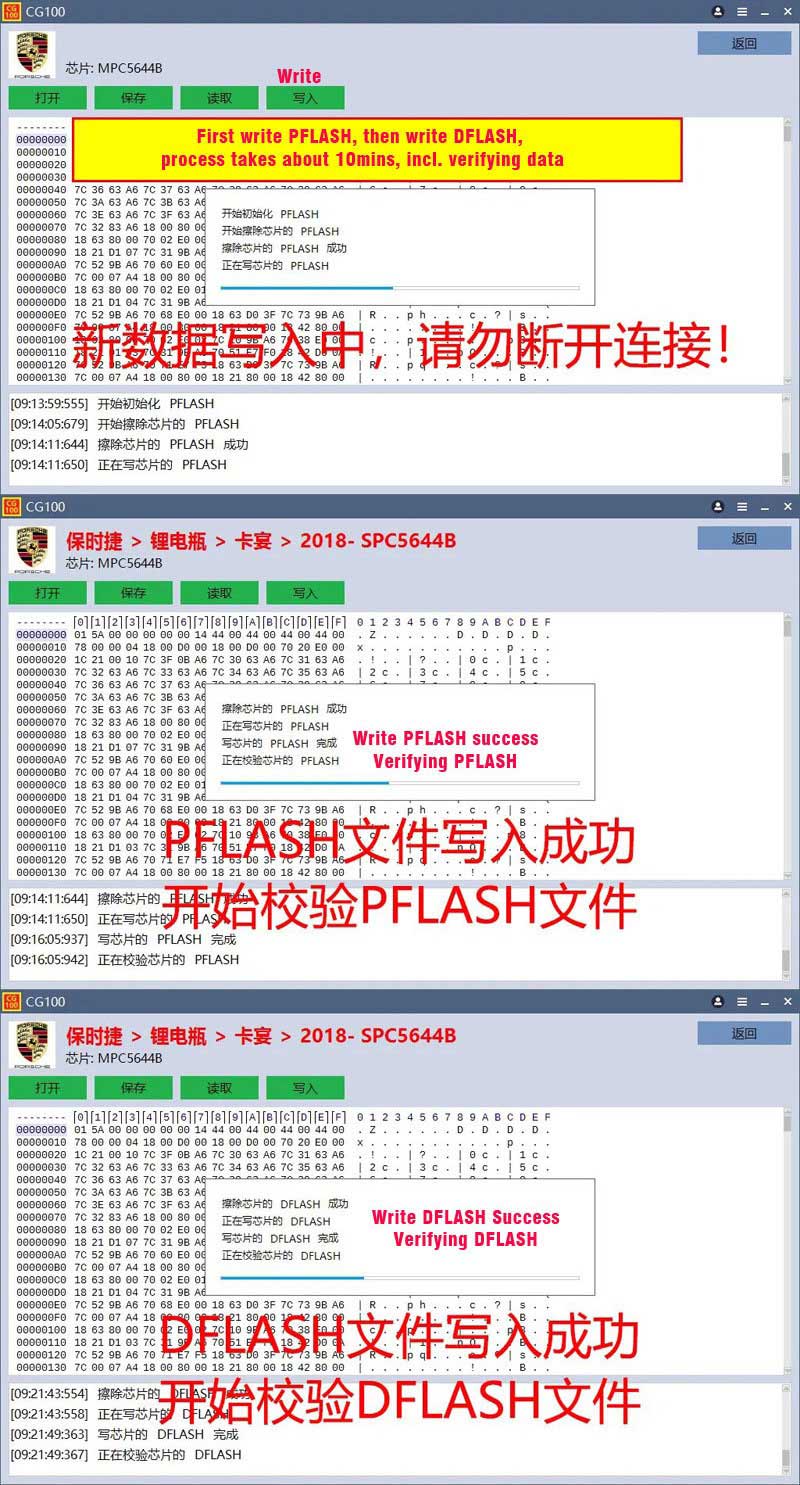

Click on 'Write' and follow these steps:
Write the PFLASH, verify the PFLASH, write the DFLASH, and verify the DFLASH.

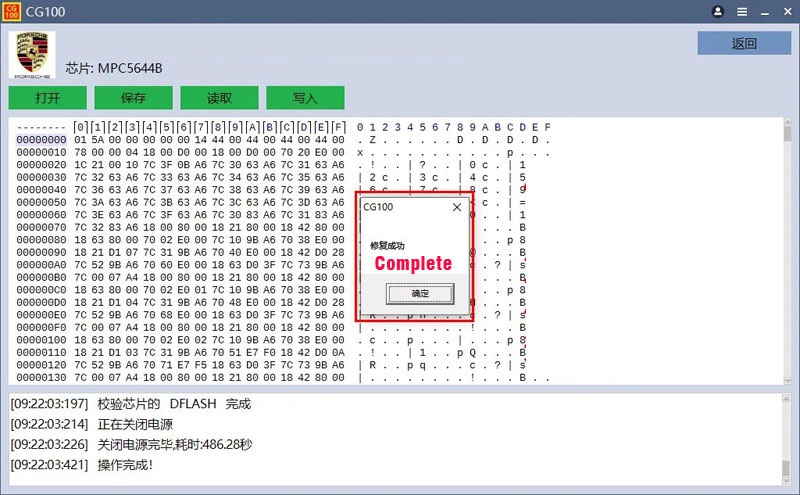

CG100 software will handle the operation automatically, so patience is required for approximately 10 minutes.



Please take note that CG100X and CG100 software are equipped with updated PFLASH and DFLASH data specifically for 2018-2020 Porsche Cayenne models. These software versions automatically write the new data to the BCM battery during the repair process.

Once the repair is completed, it is recommended to test the voltage once again.

To test the voltage, connect it to an external voltage regulator.

By bypassing the relay, proceed to charge the battery using a precision regulated charger while continuously measuring the voltage throughout the charging process.
Writing Data to the Battery Using CG100 Programmer

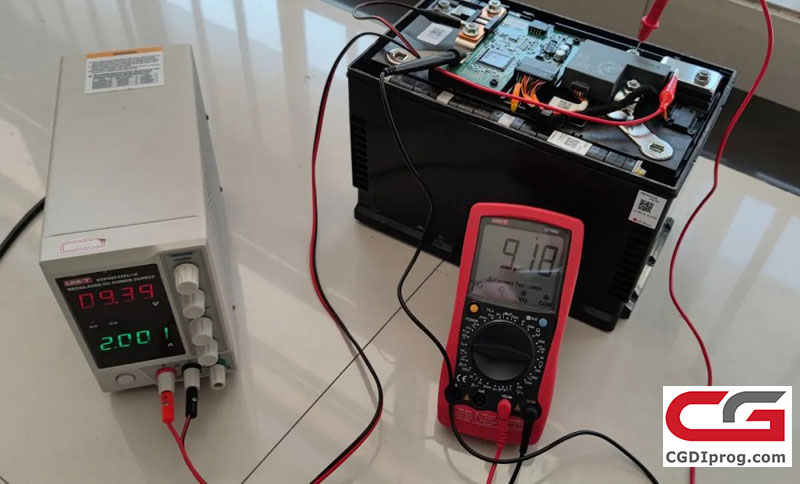

For charging purposes, a digitally controlled adjustable power supply can be used. Adjust the output mode to constant current output, starting with a small current (recommended below 3A) for the initial charging. Once the battery voltage surpasses 12V, switch to a larger current until the battery reaches full charge, calibrating the voltage.

Once the battery is charged to the regular voltage of 12V, disconnect the charger.
Charging the Battery with External Voltage Regulator

Reinstall the battery and measure the voltage once again.
Disconnecting the Charger and Reinstalling the Battery

With the battery fully charged, proceed to reinstall the battery case and tighten the screws.

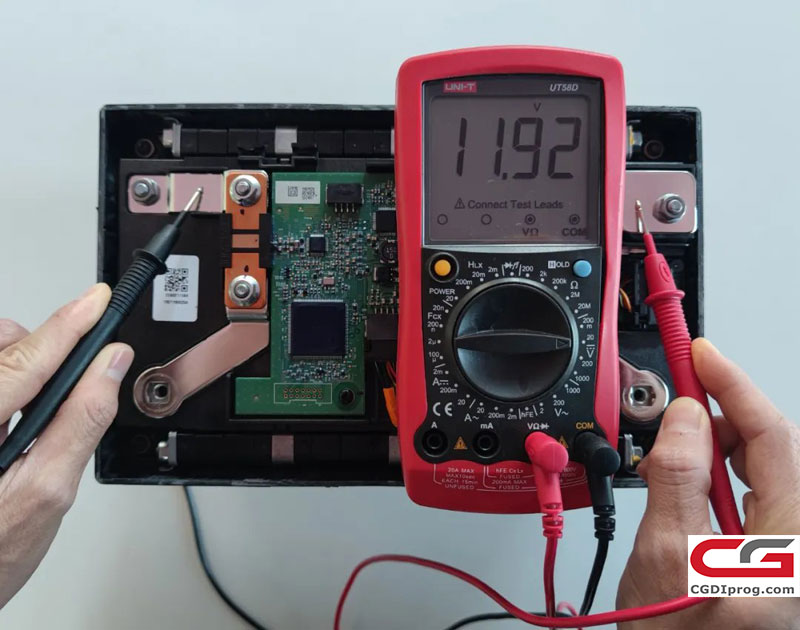

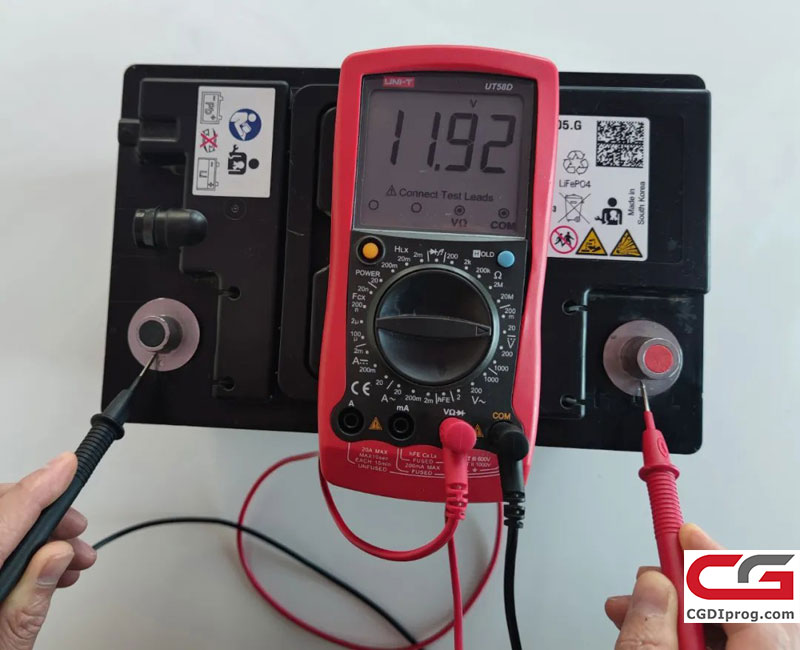

Measure the voltage once more, which should now read 11.92V.
The battery repair has been successful.
Note: It is advisable to charge the battery for an additional hour using a high-power charger after installation in the vehicle.

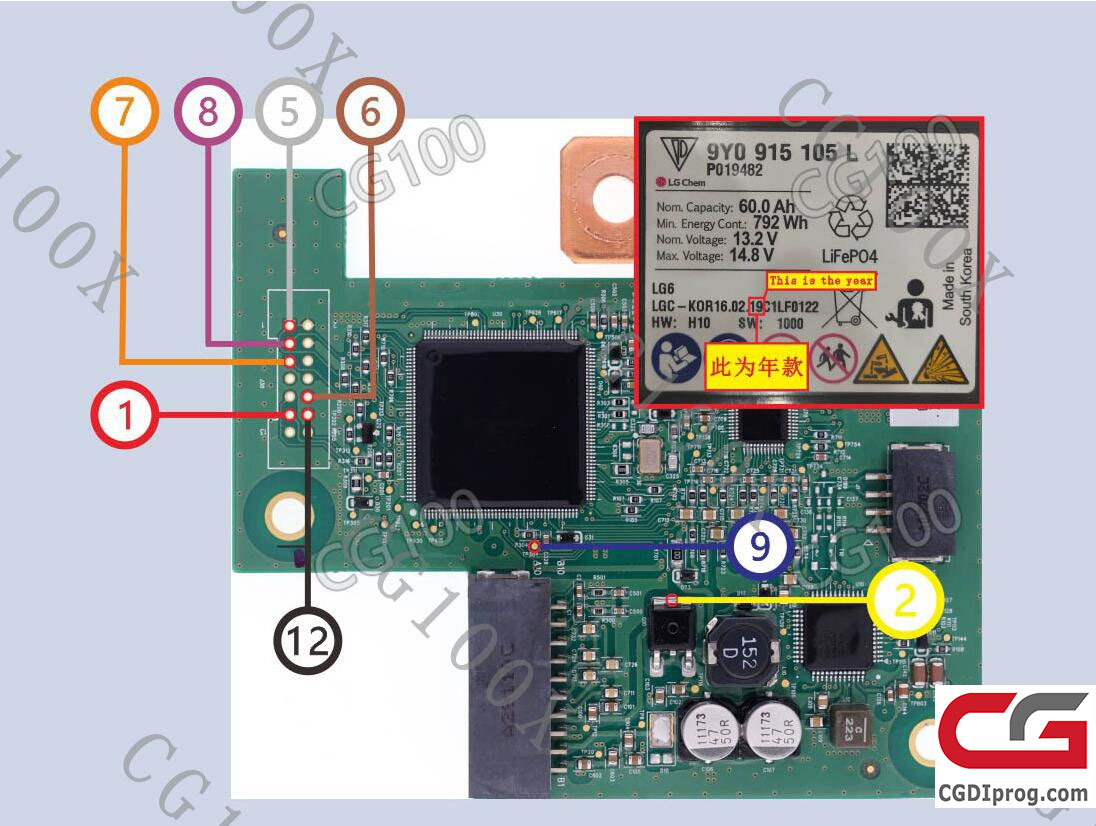

CG100X /CG100 Porsche 12V lithium battery pinouts for 2017-2020 Cayenne SPC5644B
Measuring Voltage After Battery Installation

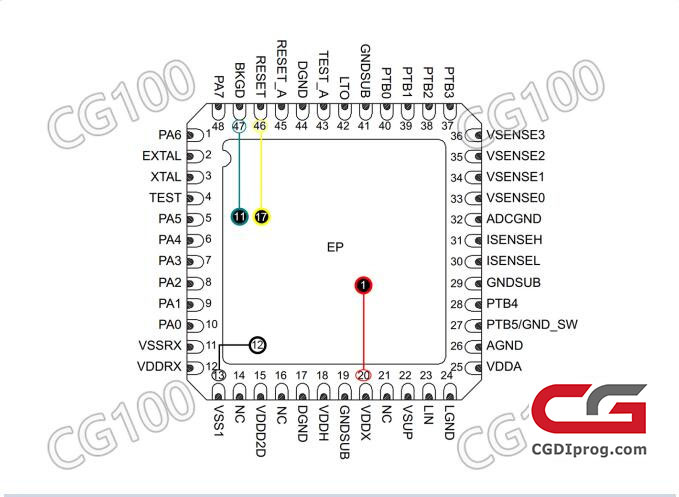

Porsche Taycan MM9Z1J638 pinouts.

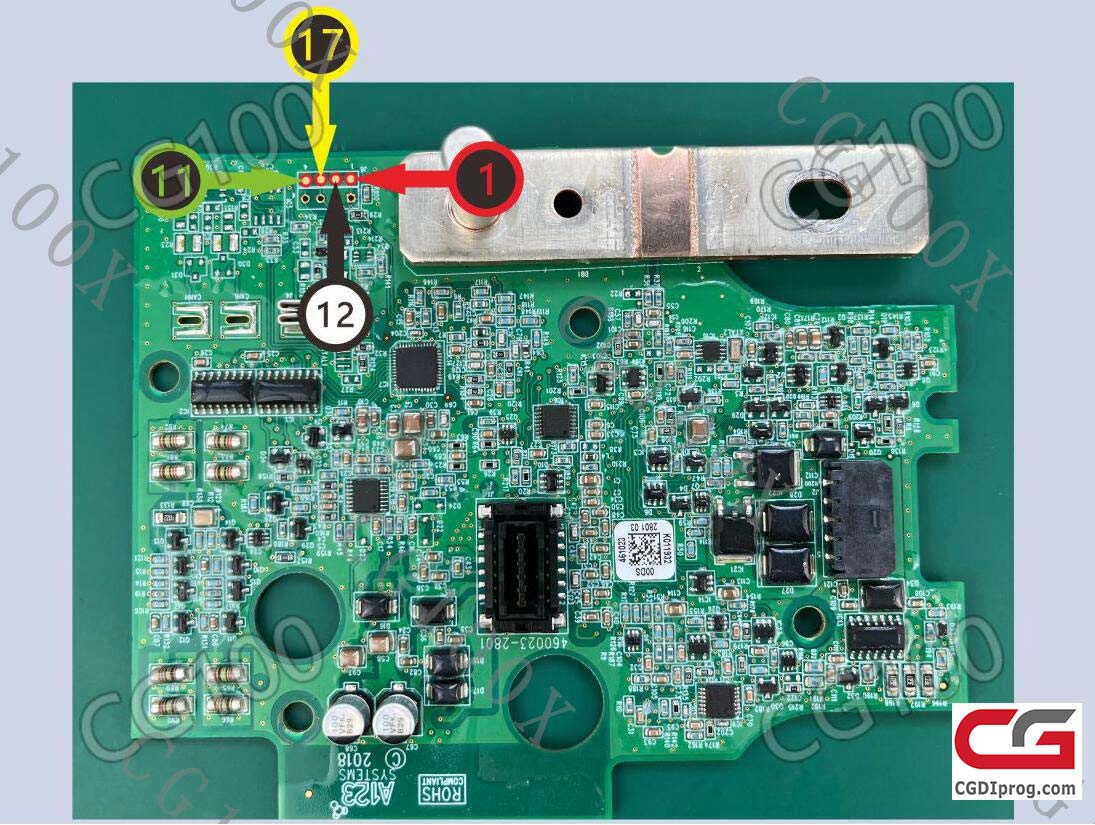

Pinouts for Porsche Cayenne BCM 12V Lithium Battery
Pinouts for Porsche Taycan MM9Z1J638


Where to buy 2023 newest CGDI CG100X smart auto repair tool
https://www.cgdiprog.com/products/cgdi-cg100x-programmer-new.html


Customer Questions & Answers

1
votes
Q:Question: How do I use CGDI CG100X New Generation Programmer? Answer this question
A:Answer:
Please refer to the user guide for detailed instructions on how to use the device.
By yiyi SELLER on May 25, 2023
2
0
votes
Q:Question: Can this tool erase these eeproms for BMW? 35160wt 35080 and 35128? Answer this question
A:Answer:
CGPRO can do that: https://www.cgdiprog.com/products/cgdi-prog-bmw-msv80-car-key-programmer.html
By Iris SELLER on December 27, 2023
CG100X cannot erase 35160 35128
By Iris SELLER on December 27, 2023
See More Answers (1) Collapse Additional Answers (1)
0
votes
Q:Question: Realiza programacion en moduloPerform programming on Toyota airbag module 89170 0KB30 ​ Answer this question
A:Answer:
here is the support list
By Iris SELLER on November 22, 2023
0
votes
Q:Question: Hello Does the CG100X device work from the can protocol without the need for soldering and wiring, similar to the CG70? Answer this question
A:Answer:
Except for the octagonal chip, all others are required.
By Iris SELLER on November 5, 2023
0
votes
Q:Question: o equipamento tem anuidade? qual o valor? Answer this question
A:Answer:
yes,need annual fee
By Iris SELLER on October 29, 2023

Customer Reviews

4.5
4.5 out of 5, There are no customer reviews yet.
5 star: rating, 0%
4 star: rating, 0%
3 star: rating, 0%
2 star: rating, 0%
1 star: rating, 0%

Top customer reviews

July 7, 2023 by michel fortas, from France
bonjour,

Outil reçus comme convenu mise en route ok
Mais cette outil mérite sérieusement une bonne mise jour en ceux qui concerne les nouveau véhicule c'est vraiment dommage pour un nouvelle outil de 2023 qu'il ne propose pas les fonctions directement en obd et plus de nouvauté
quand je le compare a d autres outils ya encore un sérieux travail a faire afin qu'il soit a mon gout au niveau,matériel destiné vraiment a ceux qui début dans le domaine
Verified User
June 21, 2023 by Nathaniel Leah, from United Kingdom
Verified User
Excellent service, highly recommended!
Verified User
June 15, 2023 by Morris, from United States
Verified User
The CG100X serves its purpose and is a good value for the money. It could be simplified a bit, but once you get the hang of it, it works smoothly.
Verified User
June 15, 2023 by Irving, from United States
Verified User
The CG100X is quite useful for my needs, especially with its ECU, airbag, and dashboard capabilities. A bit complex at first, but you get used to it.
Verified User
June 12, 2023 by Cary, from United Kingdom
Verified User
I've had some issues with updates. Sometimes the process is slower than expected. But, overall, the CG100X does what it promises.
Tags: CGDI CG100XCG100 ProgrammerAirbag Reset ToolChrismas Day Sale
