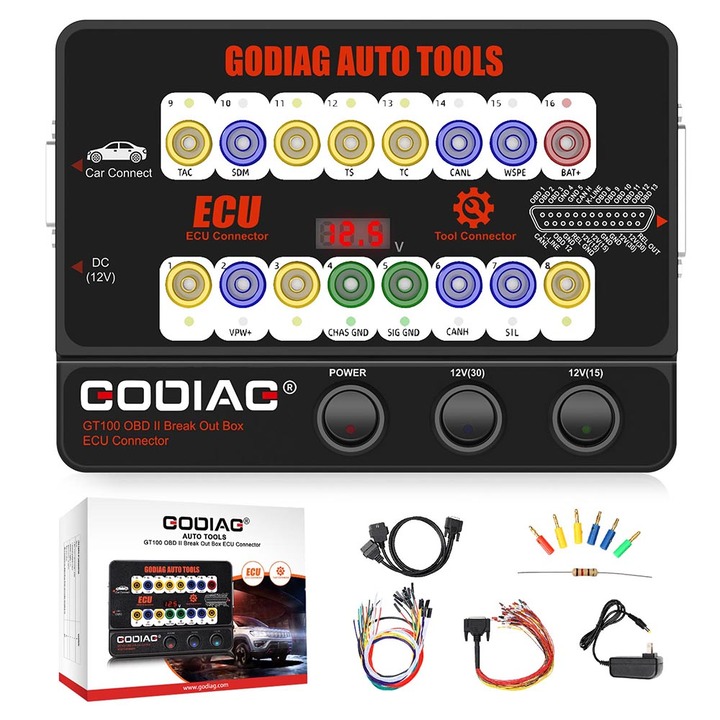

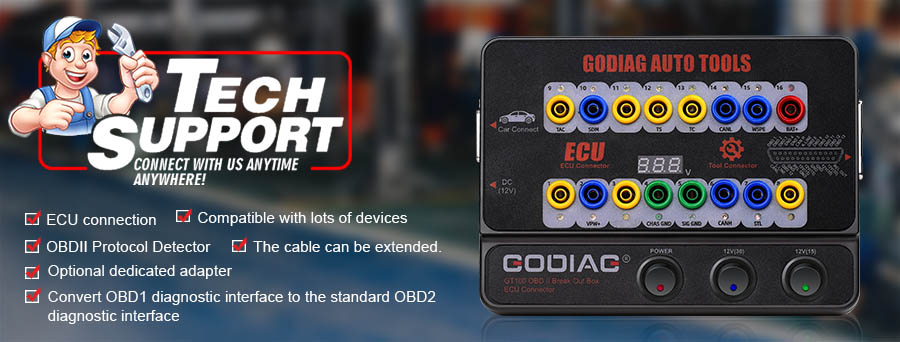

GODIAG GT100 Auto Tool OBD II Break Out Box ECU Connector Work with CGDI MB / CGDI BMW / CG Pro / FC200
$79$9920% OFF
Was
SKU:
CG-GT100
Available: In Stock
Free Shipping
Standard Post Shipping Service, Estimated delivery time: 7-18 working days
| Package Dimensions | 23.3 x 18.3 x 7.2 cm; 0.95 Kilograms |
| Item Weight | 0.95 kg |
| Returns | Return for refund within 30 days,buyer pays return shipping. |
Package: GODIAG GT100
2 Package: GODIAG GT100
Product Description

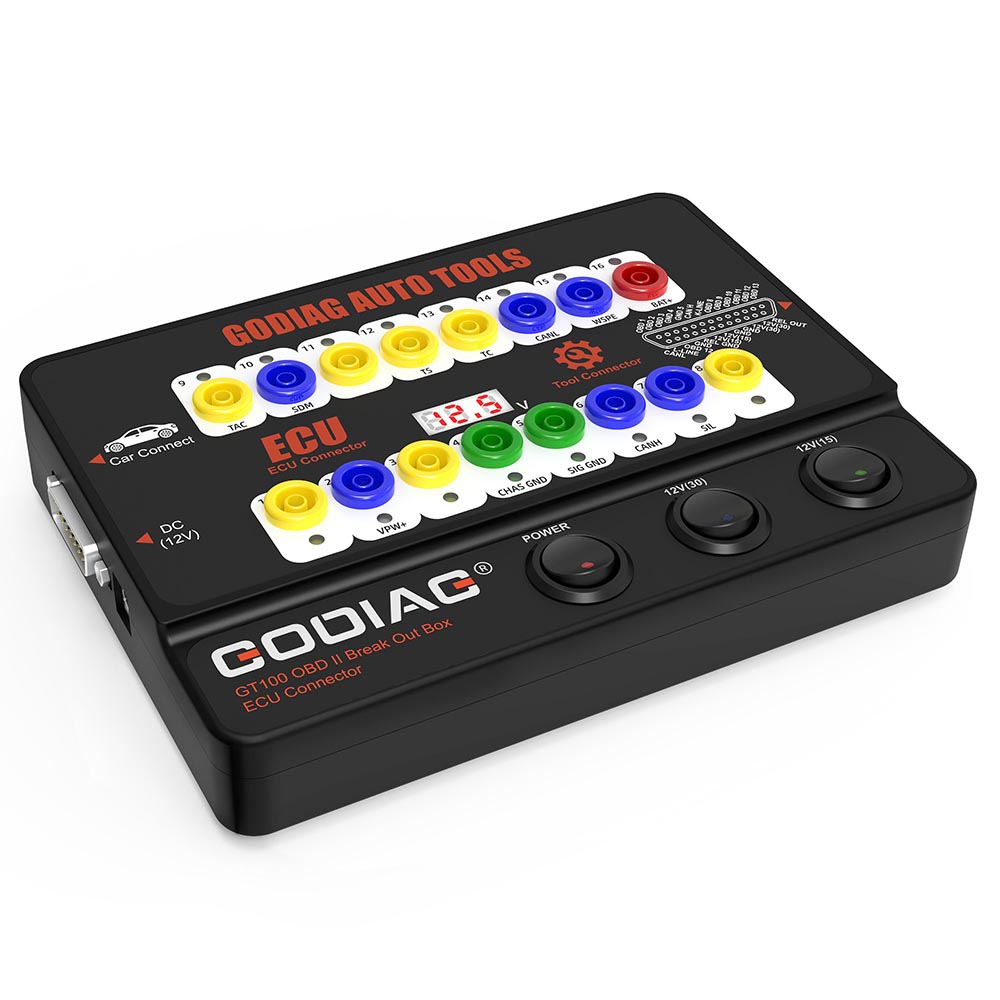

GOGIAG GT100 Auto Tool OBD II Break Out Box ECU Connector

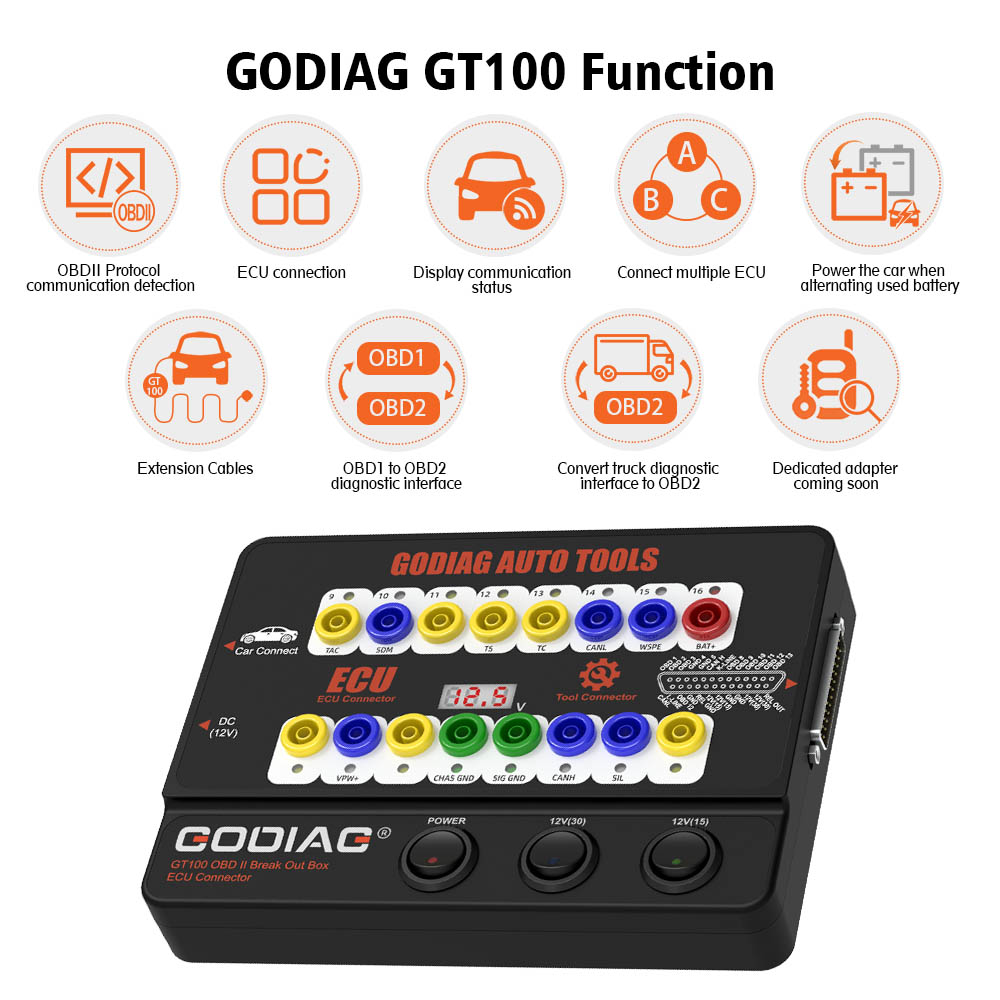

Highlights:
1. GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
2. It can convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.
3. Able to connect the single modules or multiple modules of the vehicle.
4. Connect with any diagnostic tool to tell whether the car communication is good or not.
5. Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
6. One Year Warranty.
7. Work together with CGDI BMW, CG Pro and AT200 etc.
8. BMW CAS4 Test Platform function is ready too, and will develop the connection cable for Benz and Chrysler later too, please wait.
Notice: Please choose in Version according to the voltage of your local place.

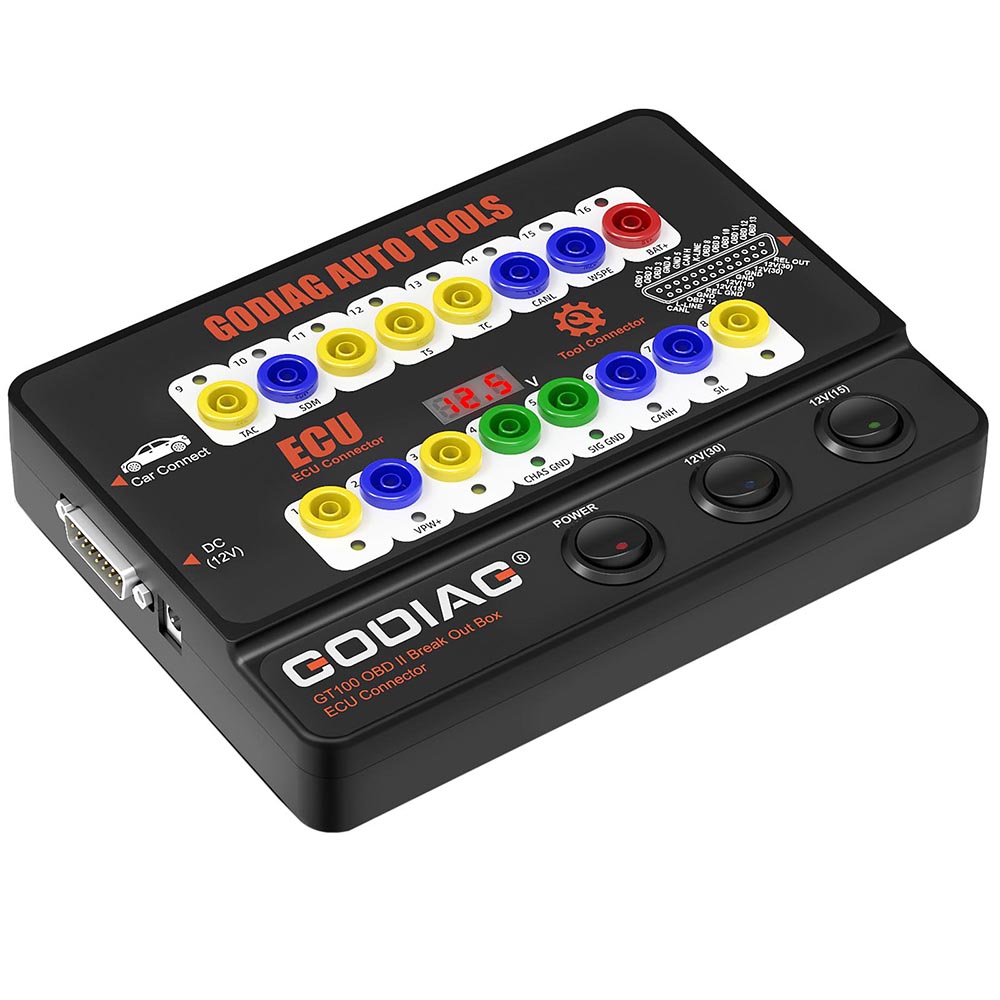

GODIAG GT100 Description:
GODIAG GT100 is a brand new ECU connector and protocol communication testing tool. It will greatly help a user to connect the ECU module separately for diagnosis, programming and coding. Also it will tell whether the diagnostic & programming tool can normally send out communication signal.

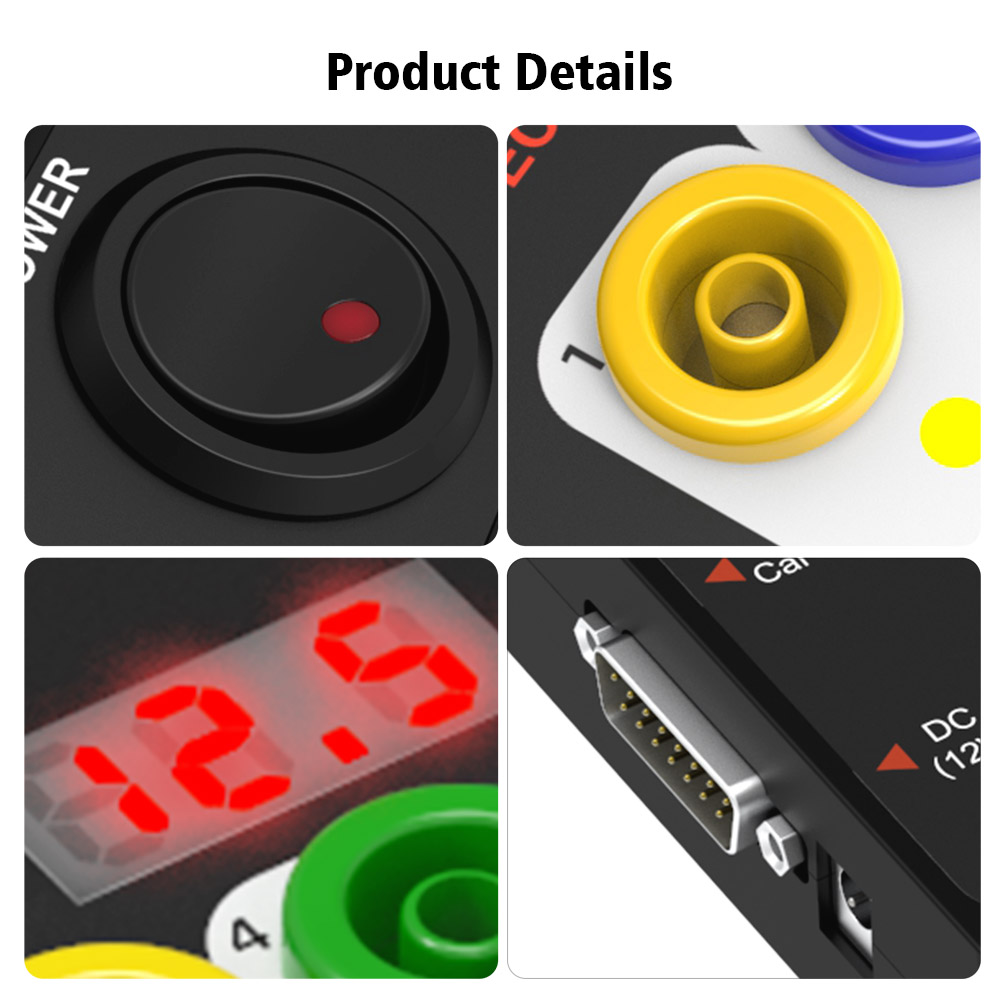

GODIAG GT100 Features:
3). Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)
4. Able to power the car when replacing the used battery.
1). Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.
Notice 1. Turn on the power switch of Godiag GT100. 2. Don' t turn on the ignition switch, don' t start the car]
2). Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.
5. Banana Plug Extension Connection:
Extend the car' s OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.
6. Convert OBD1 Diagnostic Interface to the Standard OBD2
Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.
GODIAG GT100 Connection Display:
GODIAG GT100 Connection Diagram:
GODIAG GT100 Function and Operation Guide:
- By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100' s LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start / data loss / module locked.
Indicator Meaning:
Godiag GT100 Parameter
Package includes:1pc x Host
1pc x OBD 2-in-1 extension cable
1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins
We are here for you:
Email: Sales@CGDIprog.com
WhatsApp: +86-18205996549
Skype: Sales@CGDIprog.com
Highlights:
1. GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
2. It can convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.
3. Able to connect the single modules or multiple modules of the vehicle.
4. Connect with any diagnostic tool to tell whether the car communication is good or not.
5. Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
6. One Year Warranty.
7. Work together with CGDI BMW, CG Pro and AT200 etc.
8. BMW CAS4 Test Platform function is ready too, and will develop the connection cable for Benz and Chrysler later too, please wait.
Notice: Please choose in Version according to the voltage of your local place.
GODIAG GT100 Description:
GODIAG GT100 is a brand new ECU connector and protocol communication testing tool. It will greatly help a user to connect the ECU module separately for diagnosis, programming and coding. Also it will tell whether the diagnostic & programming tool can normally send out communication signal.
GODIAG GT100 Features:
1. ECU Connection: Single Module Connection
GODIAG GT100, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.
1). Connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)
2). The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.
GODIAG GT100, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.
1). Connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)2). The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.
3). To diagnose and program for a single ECU by connecting the diagnostic tool or ECU programmer.

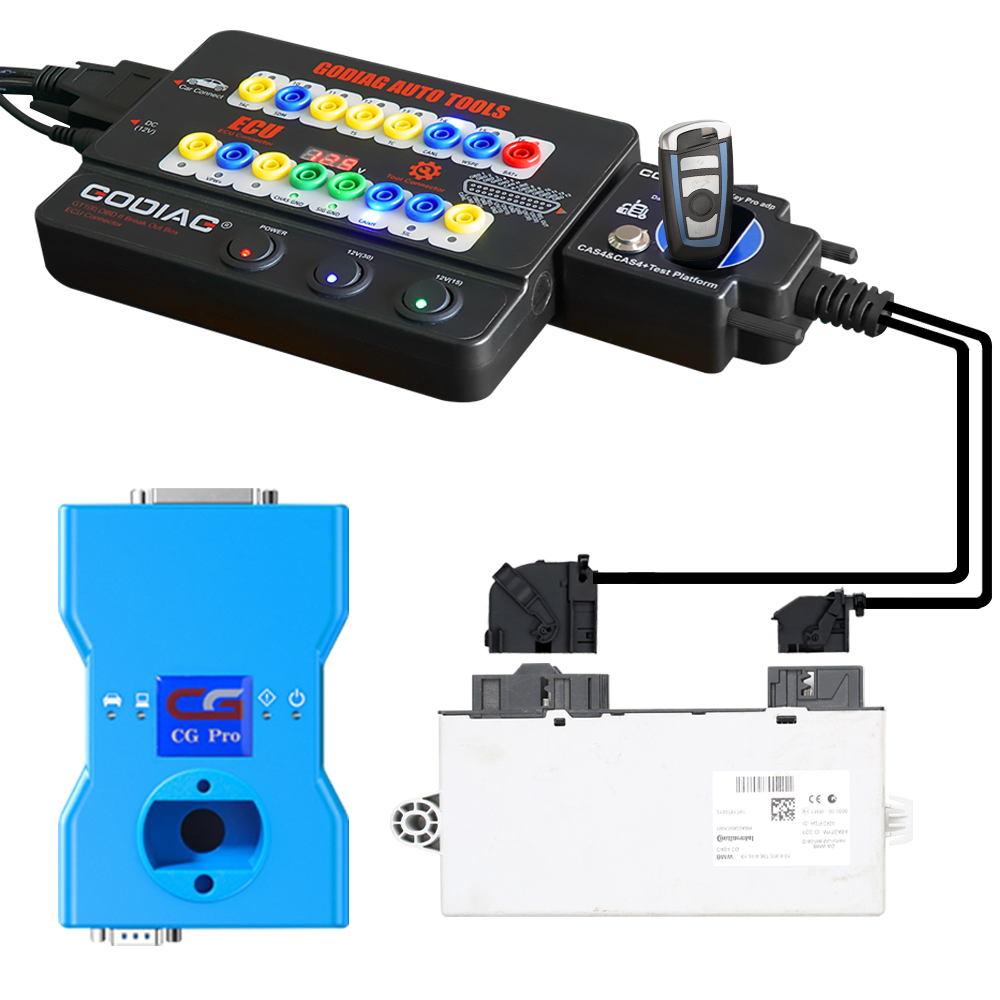

2. After CAS4 key programmed by CGDI BMW or CG Pro 9S12, you can use GT100 to test the synchronization and check their communication status.
2. After CAS4 key programmed by CGDI BMW or CG Pro 9S12, you can use GT100 to test the synchronization and check their communication status.
3. OBDII Protocol Detector & communication detection

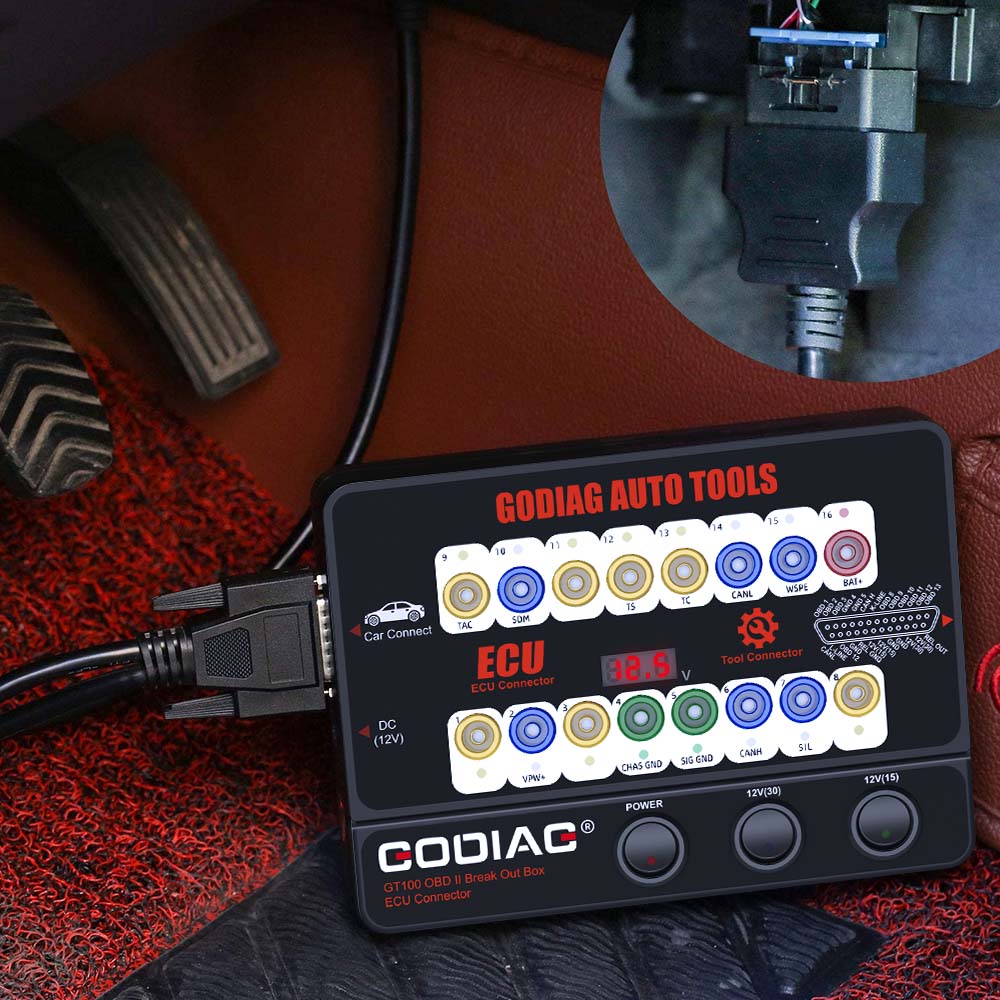

1). Connect GODIAG GT100 to the OBDII diagnostic port of the car.
2). When the device displays the voltage, turn on the power switch of GODIAG GT100.1). Connect GODIAG GT100 to the OBDII diagnostic port of the car.
3). Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)
4. Able to power the car when replacing the used battery.
1). Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.
Notice 1. Turn on the power switch of Godiag GT100. 2. Don' t turn on the ignition switch, don' t start the car]
2). Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.
5. Banana Plug Extension Connection:
Extend the car' s OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.
6. Convert OBD1 Diagnostic Interface to the Standard OBD2
Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.
GODIAG GT100 Connection Display:

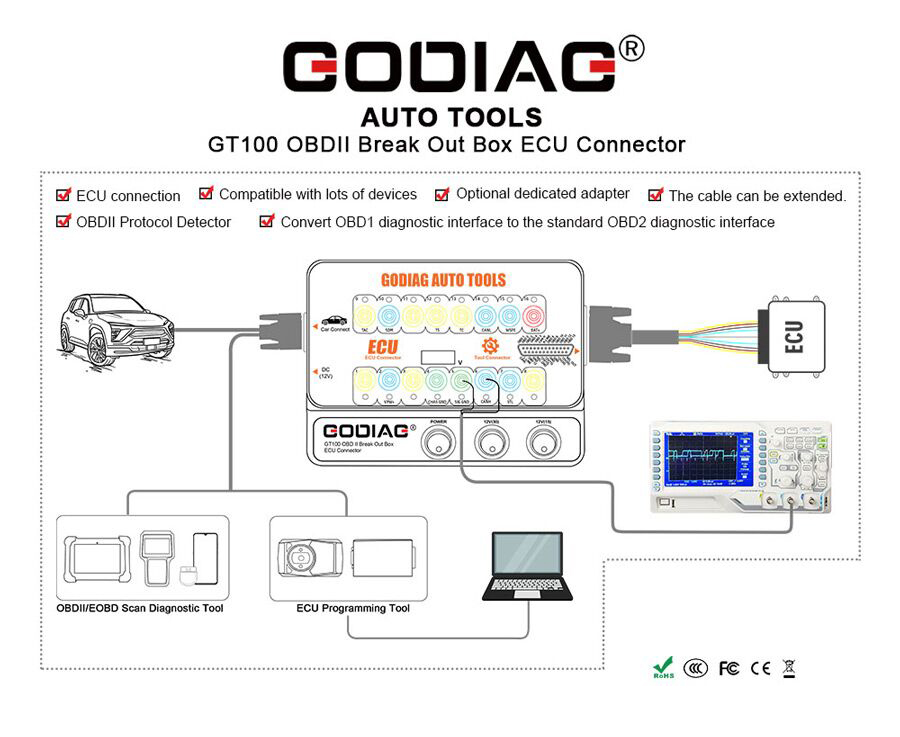

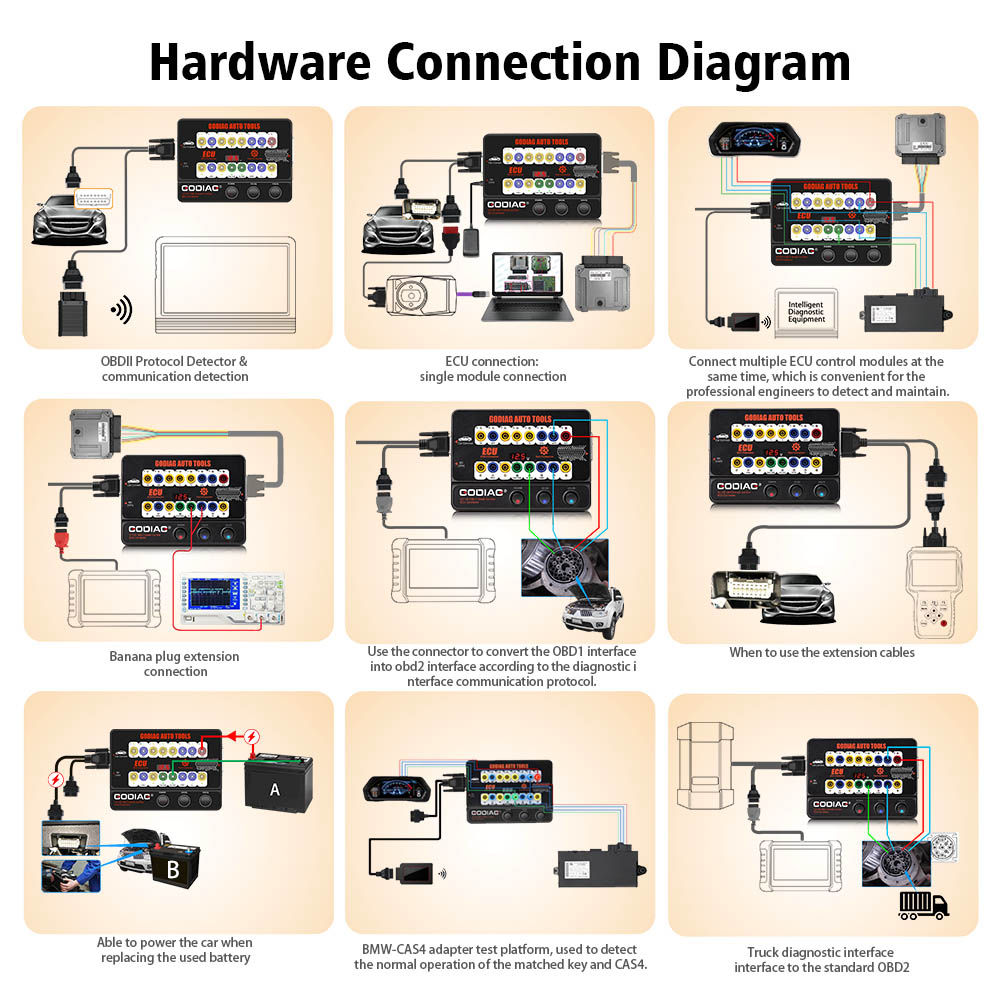

GODIAG GT100 Connection Diagram:
GODIAG GT100 Function and Operation Guide:
- By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100' s LED will indicate whether the OBDII diagnostic interface has a good communication with the car.
- Monitor the voltage of vehicle OBDII interface and display it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid the vehicle being unable to start / data loss / module locked.

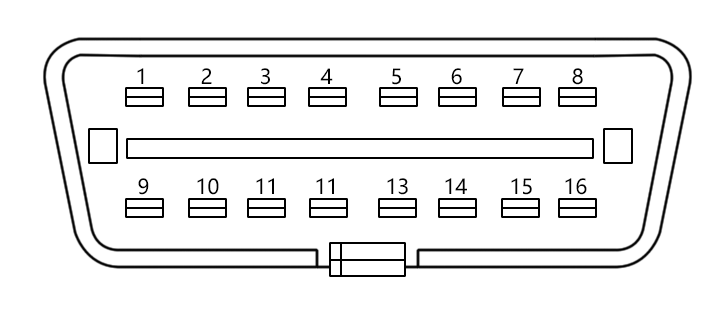

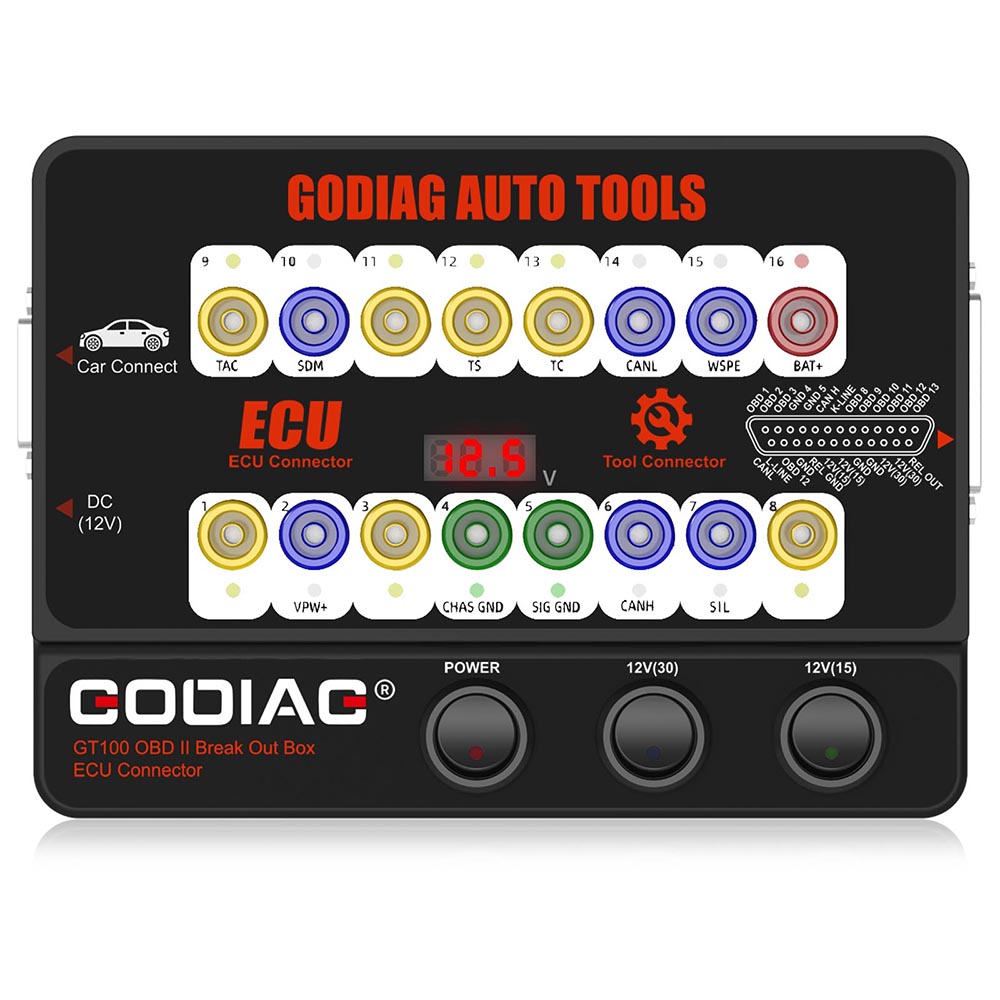

Indicator Meaning:
| 1. Manufacturer custom 2. SJE1850 wire 3. Manufacturer custom 4. Power grounding 5. Signal grounding 6. SAEJ2284《CAN》high 7. ISO9141-2& iso, DIS4230-4K wire 8. Manufacturer custom |
9. Manufacturer custom 10. SJE1850 wire《bus-> 11. Manufacturer custom 12. Manufacturer custom 13. Manufacturer custom 14. SAEJ2284《CAN》low 15. ISO9141-2 & ISO / DIS 4230-4L wire 16. Car battery positive |

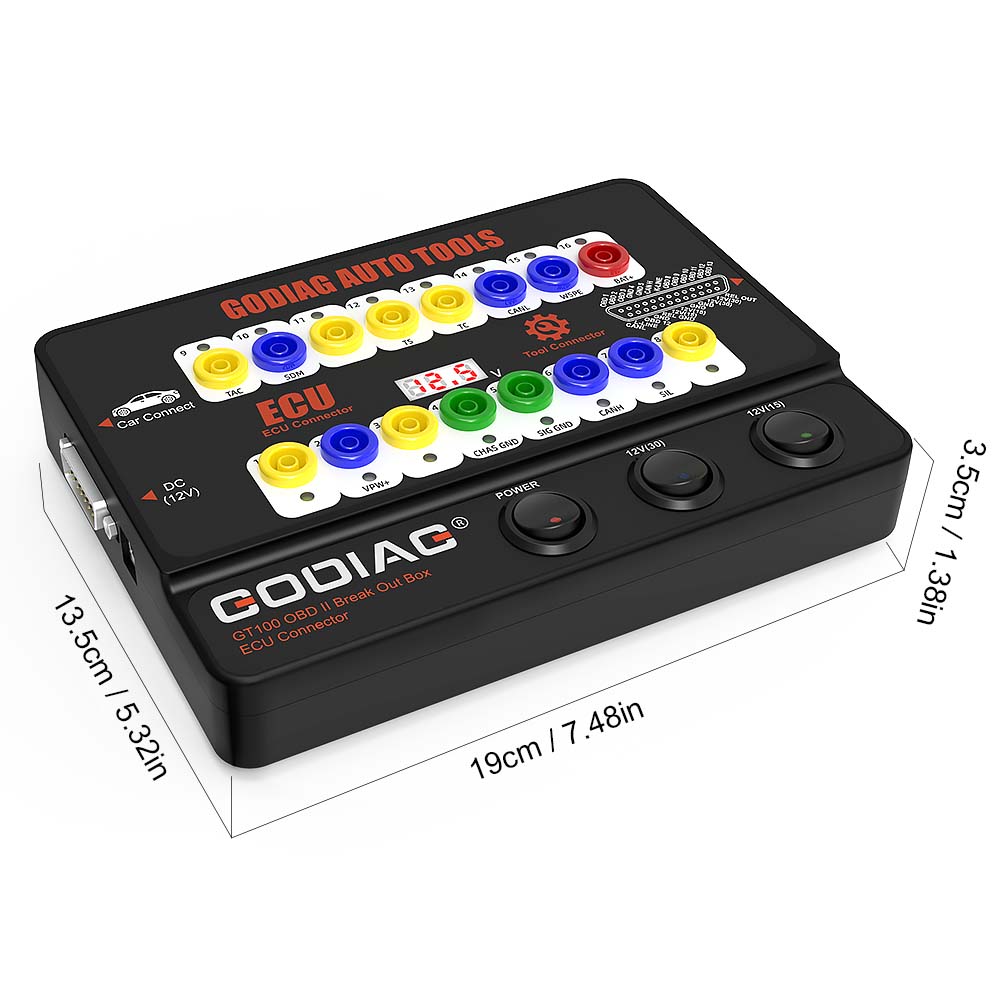

Godiag GT100 Parameter
| Item | Specification |
| Diagnostic port | OBDII |
| Working voltage | DC 9V-24V |
| Work and power | 0.5-0.6W |
| Adapter power | Input AC100v-240v, Output DC12V 1A |
| Operating temperature range | -20 to 70 ° C ( -4 to 158 ° F ) |
| Storage temperature range | -40 to 85 ° C ( -40 to 185 ° F ) |
| Dimension | L: 23cm, W:18cm, H:7cm |
Package includes:1pc x Host
1pc x OBD 2-in-1 extension cable
1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins
We are here for you:
Email: Sales@CGDIprog.com
WhatsApp: +86-18205996549
Skype: Sales@CGDIprog.com
